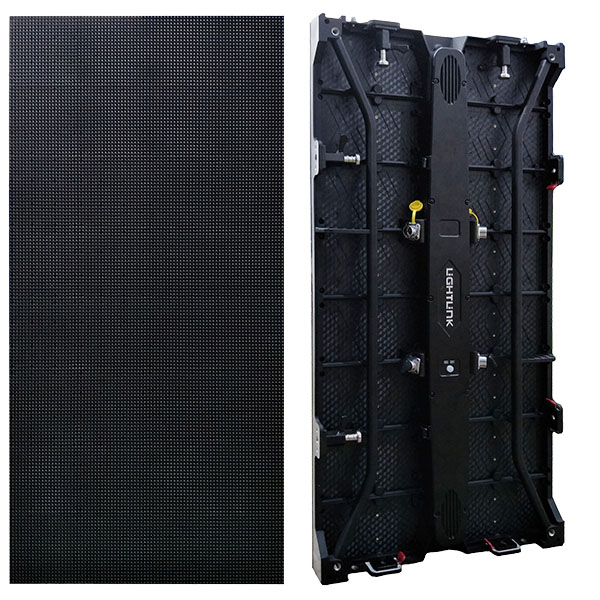

LM-Pro4

Product type: LM-Pro4


Pixel pitch: 4.8mm


Brightness: 3000nits / 5500nits


Cabinet material: Die Cast Aluminum


Product Description


The birth of LM-Pro just for achieving our customer’s every stage deductive value.


It’s not only pursuing the perfect appearance, but also for a better stage display effect: to make sure each circuit is well-arranged, each screw is solid and reliable; every process is tempered;our pursuit is to let each of your activities is vivid, beautiful and perfect…

Parameters Value
Product type LM-Pro4
Pixel pitch(mm) 4.8
Pixel configuration SMD 3 IN 1
Pixel Density(Pixels/㎡) 43,263
Module size(mm) 500×125

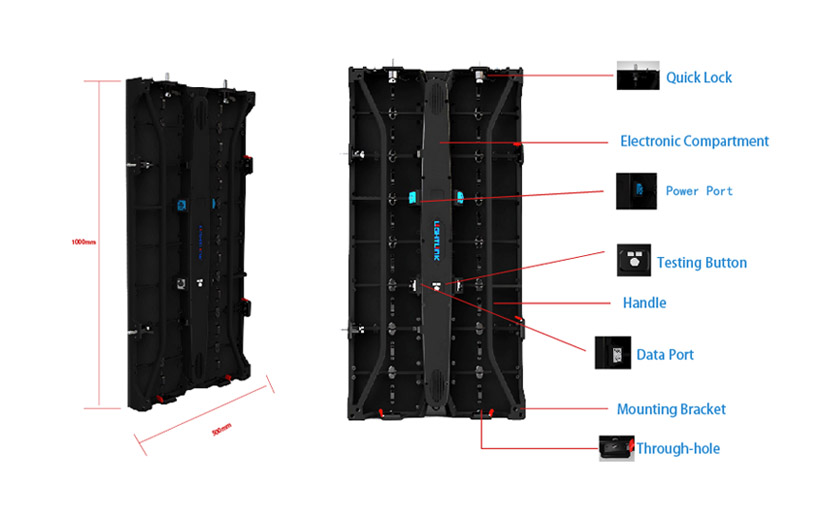

Cabinet size(W*H*D mm) 500×1000×60
Scanning Method 1/13 ;1/7
Brightness(cd/㎡) 3000 / 5500
Viewing Angle(H/V) H:140/V:100
Display Refrest Rate(Hz) ≥ 1920/3840
Cabinet Material Die Cast Aluminum
Cabinet weight(kg) ≈11.6kg
Input Power Frequency(Hz) 50/60
Input voltage(Nominal)(V) 220V(110/110-220)
Input Power(Max)(W/㎡) 600
Input Power(Average)(W/㎡) 300
Lifespan(H) ≥50,000


Product Features

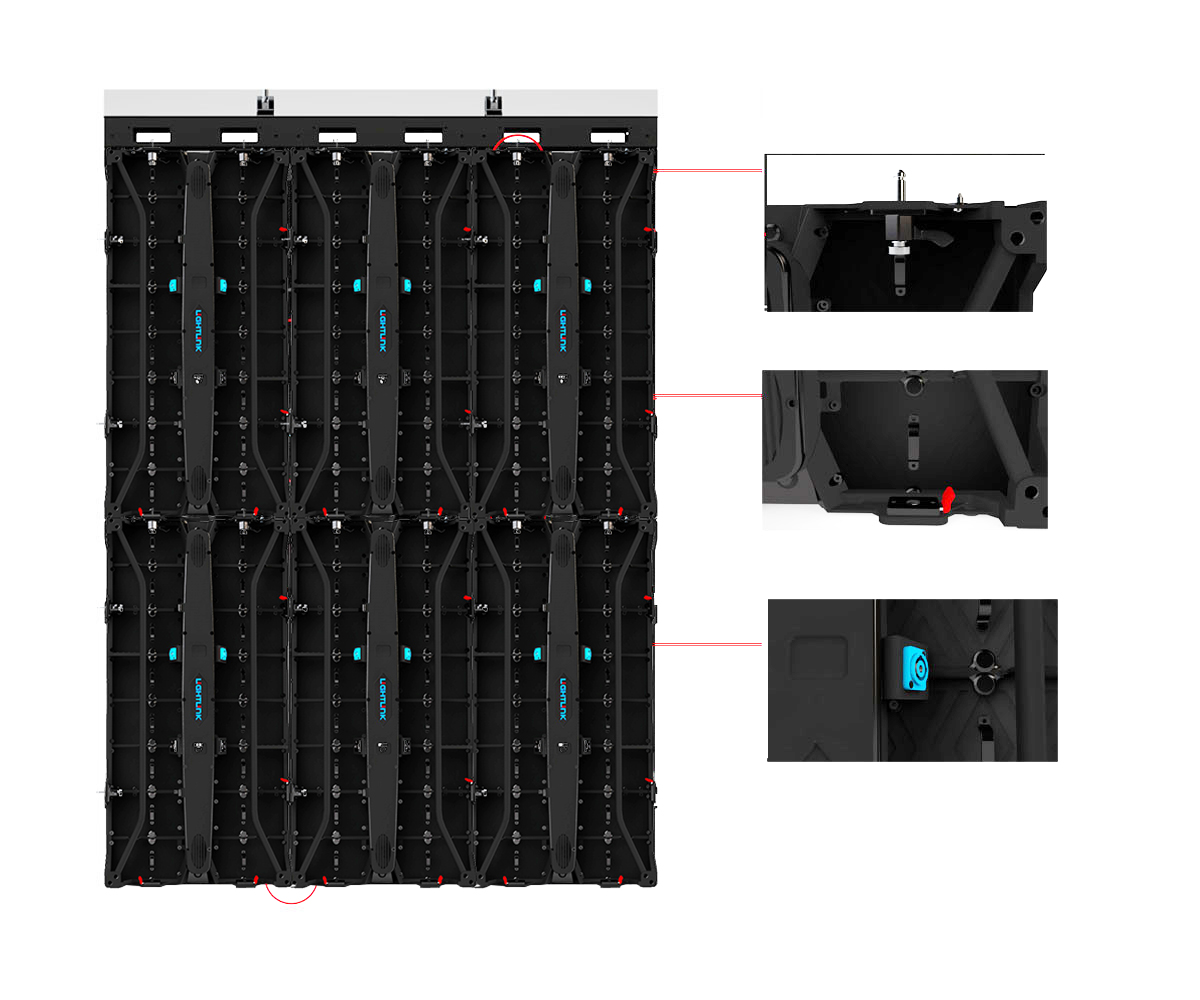

1.Different from the traditional aluminum cabinet, the die-casting aluminum cabinet stitching has higher accuracy, it’s disassembly and maintenance is extremely convenient.



2.Point-by-point calibration and high-end display technology is with a  high refresh rate, high gray level, high contrast and vivid showing effect.


3.Patented design without fan achieve no noise, low power consumption, and can be used in temperature range of -30-60 degrees.


4.The design of straight edge or beveled edges can be use to create a curved screen.


5. Permeability is better and cabinet is thinner.


6.The size of 500X1000 is the ideal choice use in stage background, bar, wedding ceremony and other applications.
