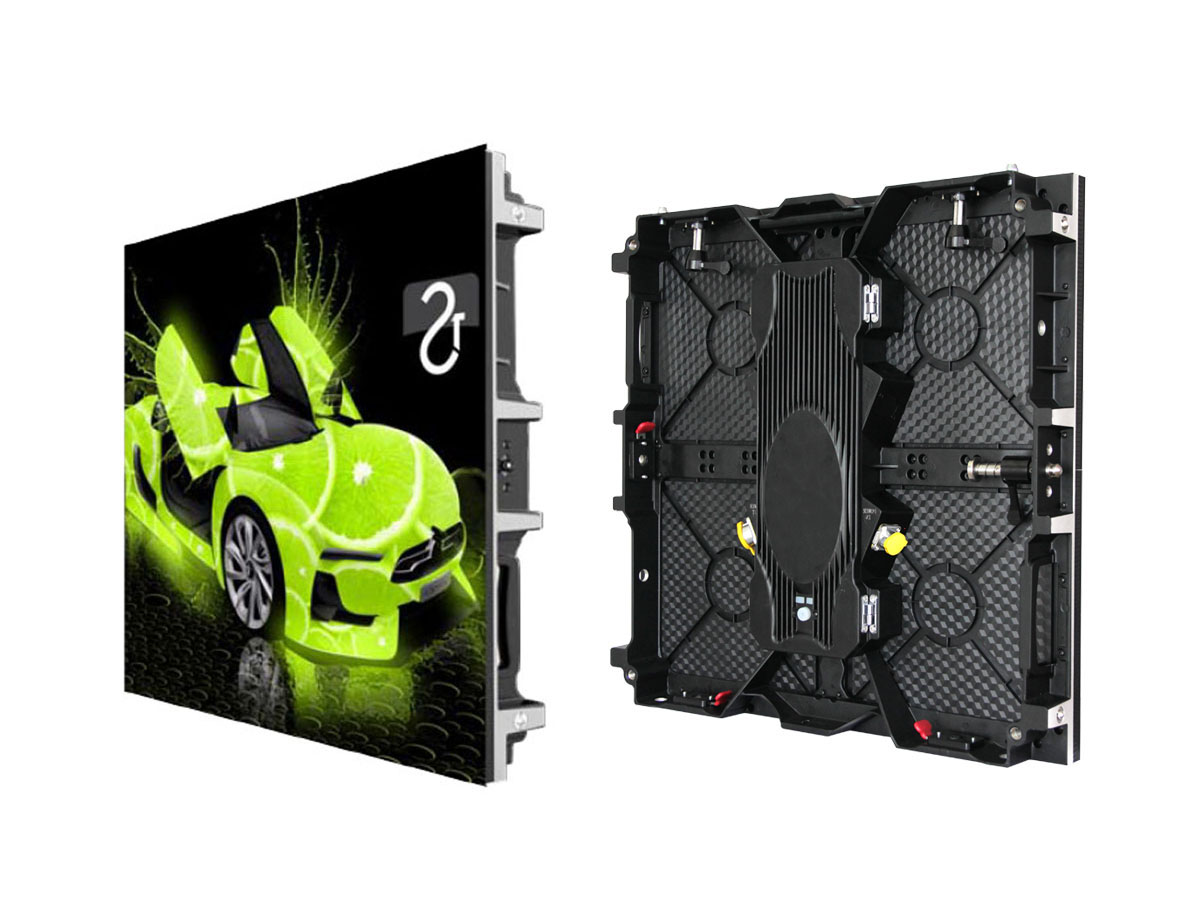

Product type: LR5

Pixel pitch: 5.9mm

Brightness: 3000nits-7200nits

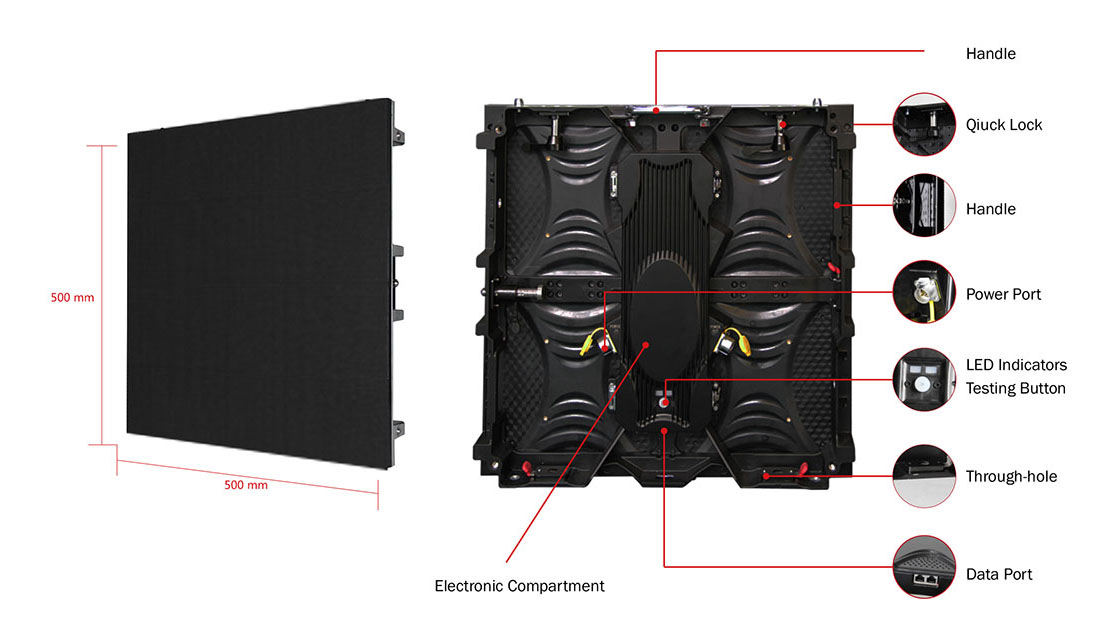

Cabinet material: diecast aluminum

Delicate Appearance

Using the flexible assembly structure makes the cabinet ultra-simple, ultra-thin and ultra-light

Using the latest anti-collision plate technology guarantees stable and longer life in the rental process

Patented fanless design with no noise and low power consumption, can be used in the  temperature range from -30 ℃ to 60 ℃

Outdoor high-definition,high-brightness and smaller dot pitch make more delicate picture

Can be customized arc screen: According to customer demand for custom-designed hypotenuse, splicing curved screen

Seamless assembly technology: Cabinet and module gap tolerance control in 0.1mm, screen flat splicing distance control in the 0.2mm

Excellent Design

Multi-function fixed, intelligent positioning, gap adjustable

The entire screen seamlessly, can be quickly installed and removed

Splicing gap flatness <0.1mm

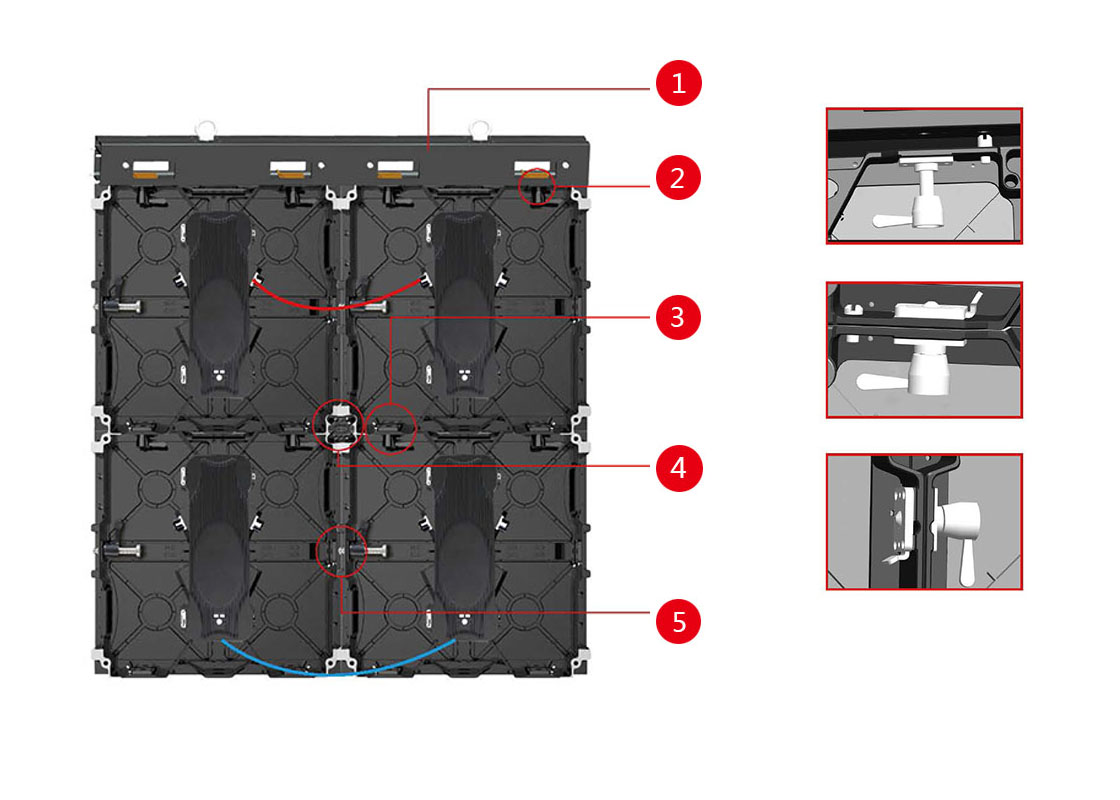

Left Picture:

1. Adjustable Hanging Bracket.

2. Connection detail between hanging bracket and cabinets.

3. Connectiong detail between cabinets (Upper & Lower).

4. Mounting Bracket.

5. Connection detail between cabinets (Left & Right).
