Product type: LR SM
Pixel pitch: 2.6mm / 2.97mm /3.91mm / 4.81mm
Brightness: 1000nits
Cabinet material: Die Cast Aluminum
1. Graceful & modern appearance design with technological sense, Once installed, the screen formation close seamless just like one single panel, which makes the perfect display effect.
2. Larger view angle to meet the delicate requirements of color. It has automatic color correction function which makes it can present smooth and delicate color.
3. Intelligent module for data storage in time which can save the correction data so that it allows for replace and play.
4. Convenient maintenance with integrated power box.
5. Steady working with wireless modular components.
6. Dual power backup to avoid black screen.
7. Fixed angle adjustment for different curves, more accurate.
8. The maximum radian (inner arc +10 degrees, outer arc -10 degrees). Also other excellent features such as high security and easy installation which make it perform great in many occasions like concert, wedding ceremony and other big events.
| Parameters | Value | |||
| Product type | 2.6 | 2.97 | 3.91 | 4.81 |
| Pixel configuration | SMD 1515 | SMD 1515 | SMD 2020 | SMD 2020 |
| Module resolution | 192*48 | 168*42 | 128*32 | 104*26 |
| Module Size(mm) | 500*125 | 500*125 | 500*125 | 500*125 |
| Pixel Density(Pixels/m2) | 147 456 | 112 896 | 65 536 | 43 264 |
| Brightness（cd/m2） | 1 000 | 1 000 | 1 000 | 1 000 |
| Viewing Angle(H/V) | H:140 V:120 | H:140 V:120 | H:140 V:120 | H:140 V:120 |

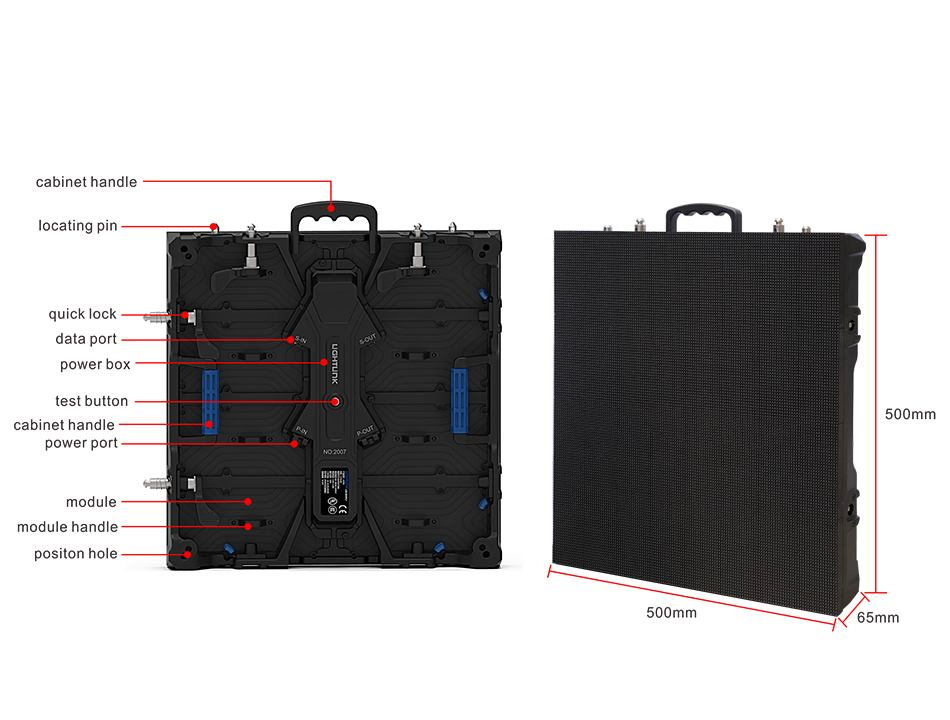

| Cabinet Size(mm) | 500*500*65 | 500*500*65 | 500*500*65 | 500*500*65 |
| Cabinet Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Cabinet weight(kg) | ≈6.5kg | ≈6.5kg | 6.7kg | ≈6.5kg |
| Refresh rate(Hz) | ≥1920/3840 | ≥1920/3840 | ≥1920/3840 | ≥1920/3840 |
| Input voltage(V) | AC100-240 | AC 220V（110、110-220） | AC 220V（110、110-220） | AC100-240 |
| Input power frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Max Input Power(W/m2) | ≈150 | ≈150 | ≈150 | ≈150 |
| Average Input Power(W/m2) | ≈75 | ≈75 | ≈75 | ≈75 |
| Lifespan(H) | ≥50000 | ≥50000 | ≥50000 | ≥50000 |
