LX-CR

Product type: LX-CR

Pixel pitch: Horizontal:3.9 Vertical:7.8 / Horizontal:7.8 Vertical:7.8

Brightness: 3000nits

Cabinet material: Aluminum die casting

FEATURES

- Simple & fashion appearance design, which is full of modern and technological feeling;

- Transparent acrylic covers with high permeability, light transmission & air permeability which transparency up to 86%;

- Retain architectural design features to meet lighting requirements and demonstrate an ultra-wide perspective;

- Unique displaying effect, easy to build three-dimensional space to make your stage stand out;

- Meet a various of creative display needs and created a new modes of outdoor media communication.

Parameters	Value
Pixel pitch（mm）	Horizontal:3.9; Vertical:7.8	Horizontal:7.8; Vertical:7.8
Pixel configuration	1921 3 in 1	1206 3 in 1
Module resolution(Pixels)	128*16	64*32
Module size(mm)	500*125	500*250
Pixel Density（Pixels/㎡)	32,768	16,384
Brightness(cd/㎡)	3,000	1,500
Viewing angle(H/V)	H:160; V:100	H:160; V:100
Cabinet size(WHD mm)	100050068	100050068
Cabinet Material	Aluminum die casting	Aluminum die casting
Cabinet weight(kg)	≈8kg	≈8kg
Refresh Rate(Hz)	≥1920/3840	≥1920/3840
Input voltage(Nominal)(V)	AC100-240	AC100-240
Input Power Frequency(Hz)	50/60	50/60
Max Input Power(W/㎡)	≈180	≈180
Average Input Power(W/㎡)	≈90	≈90
Lifespan(H)	≥50,000	≥50,000

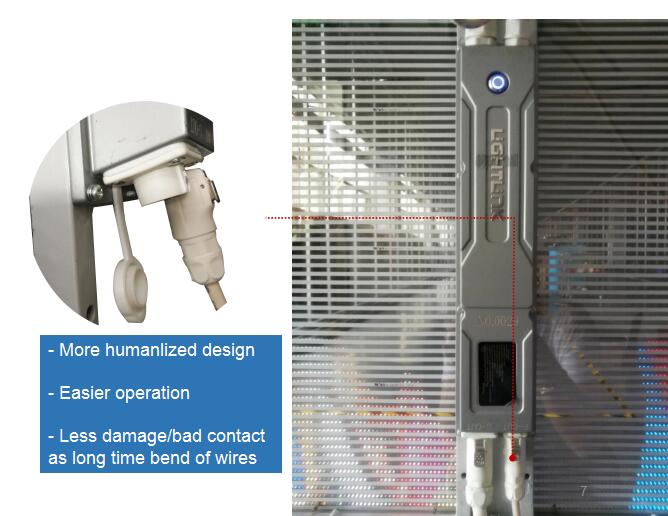

Ergonomics design of slanting hot plug

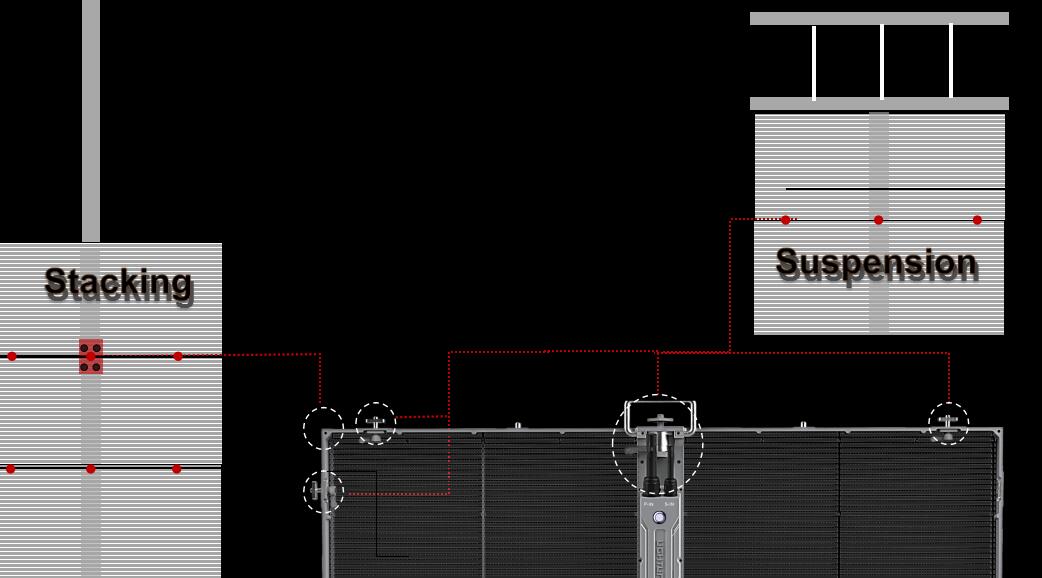

Installations:

Download

Related Cases

Everyday these amazing things happens all over the world…

Interested in our products? Then get in touch with us!

You can fill out the form on the right, let us know your demand, we will get in touch with you as soon as possible. Of course, you are welcome to e-mail or call us, thank you for your support crystal table!

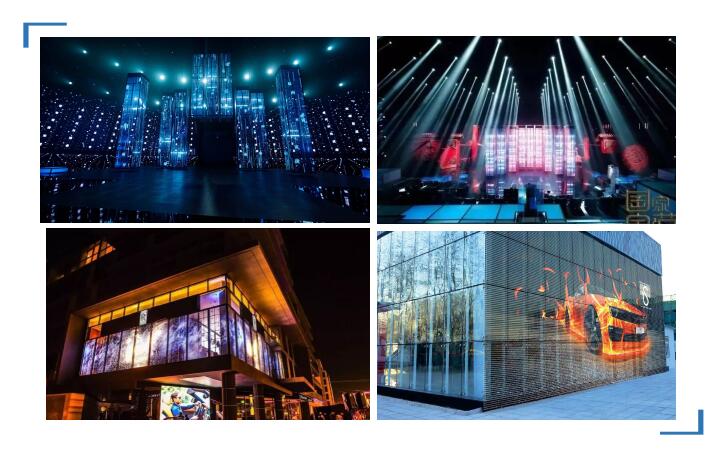

Applicaction：
