Product type: Glory T
Pixel pitch: 2.6mm / 2.9mm /3.9mm
Brightness: 1000nits
Cabinet material: Carbon fiber & Magnesium Alloy

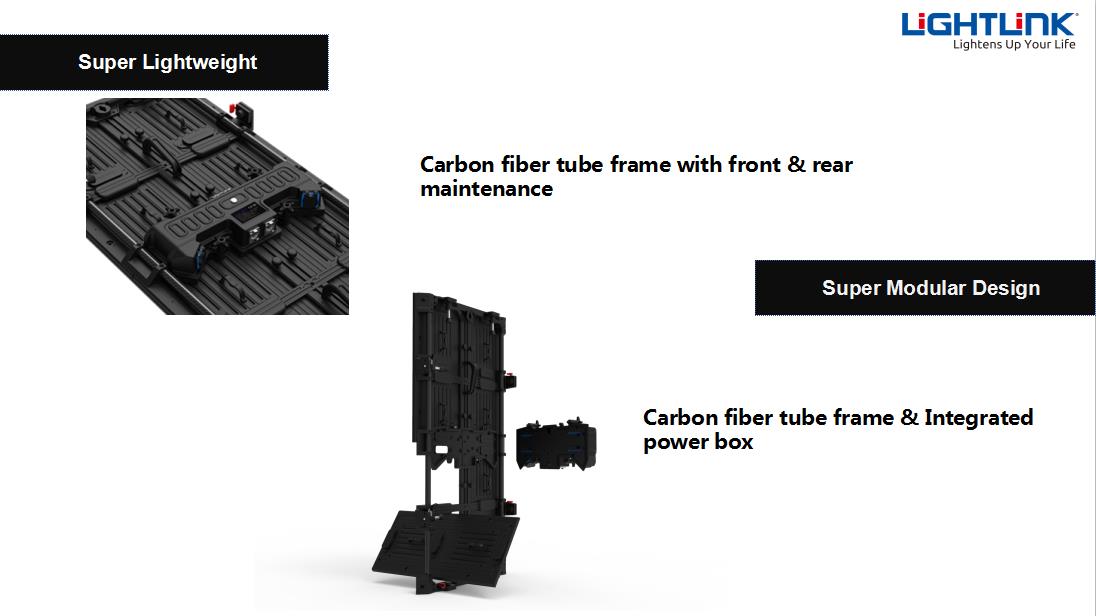

1.Carbon fiber design.

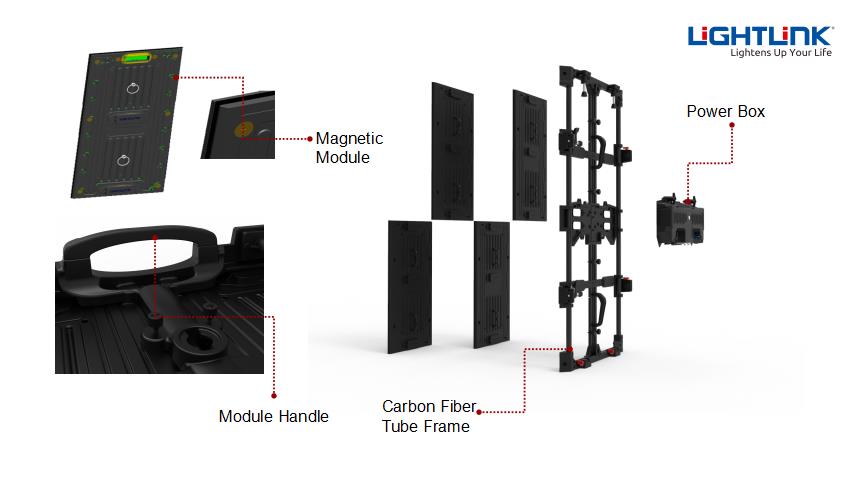

2.Integrated power box compatible withe several series.

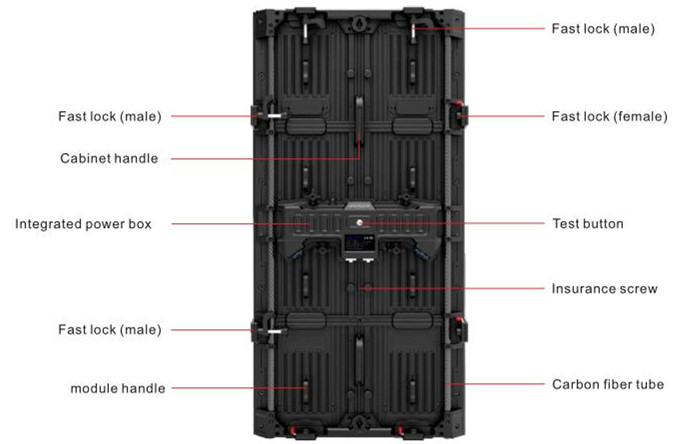

3.Front and rear maintenance.

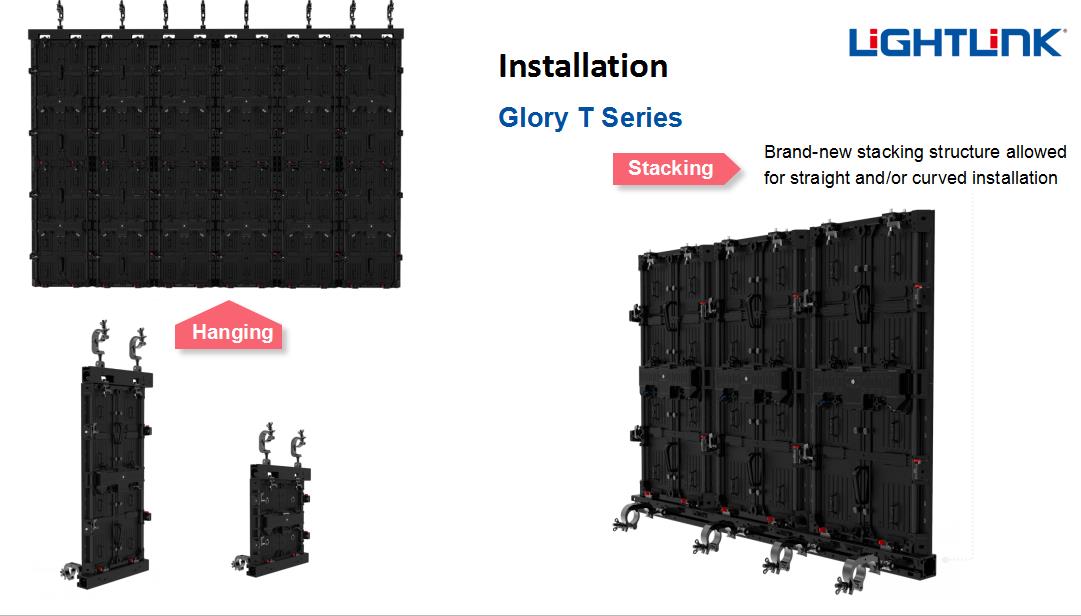

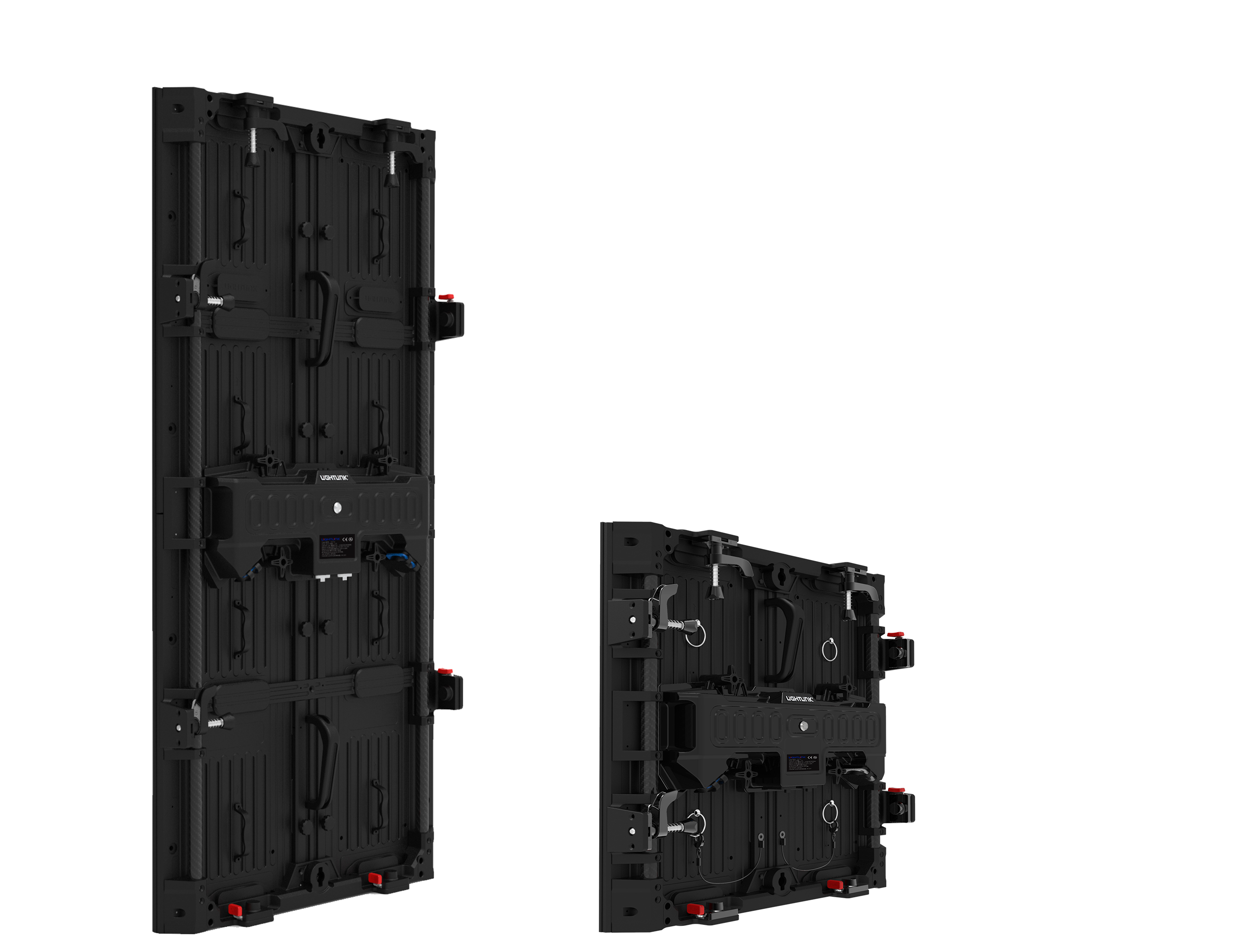

4.Large module format(250×500mm) can be mounted vertically and horizontally.
5.Anti-collision PCB resistant to 8kgs impact force.
6.Tool-free parts replacement.
7.Available in mesh and/or 90° installation for cube design.
Parameters | Value(indoor) | ||
Product type | 2.6 | 2.9 | 3.9 |
Pixel configuration | SMD 1515 3 in 1 | SMD 1515 3 in 1 | SMD 2121 3 in 1 |
Module resolution | 96*96 | 84*84 | 64*128 |
Module Size(mm) | 250*250 | 250*250 | 250*500 |
Pixel Density(Pixels/m2) | 147,456 | 112,896 | 65,536 |
Brightness(cd/m2) | 1 000 | 1 000 | 1 000 |
Viewing Angle(H/V) | H:140 V:120 | H:140 V:120 | H:140 V:120 |
Cabinet Size(mm) | 500*500*75 | 500*500*75 |
A:500*500*72 B:500*1000*72 |
Cabinet Material | Carbon fiber & Magnesium Alloy |
Carbon fiber & Magnesium Alloy |
Carbon fiber & Magnesium Alloy |
Cabinet weight(kg) | ≈6kg | ≈6kg | A≈6kg B≈9kg |
Refresh rate(Hz) | ≥1920/3840 | ≥1920/3840 | ≥1920/3840 |
Input voltage(V) | AC 100-240 | AC 100-240 | AC 100-240 |
Input power frequency(Hz) | 50/60 | 50/60 | 50/60 |
Max Input Power(W/m2) | ≈720 | ≈720 | ≈720 |
Average Input Power(W/m2) | ≈360 | ≈360 | ≈360 |
Lifespan(H) | ≥50000 | ≥50000 | ≥50000 |
