Product type: LR5
Pixel pitch: 5.9mm
Brightness: 1000nits-1300nits
Cabinet material: aluminum die casting
1. Fast and flexible installation
2. High-end display technology, the screen is more uniform and good
3. The use of the latest anti-collision plate technology guarantees good security
4. Gap adjustable, seamless stitching
5. No noise, low power consumption
6. Excellent thermal performance
| Parameters | Value |
| Product type | LR5 |
| Pixel pitch(mm) | 5.9 |
| Pixel configuration | SMD3528 |
| Module size(mm) | 250×250 |
| Cabinet size(W*H*D mm) | 500×500×65 |
| Pixel Density（Pixels/㎡） | 28,224 |
| Brightness(cd/㎡) | 1000≤&≤1300 |
| Cabinet Material | Die cast Aluminum |
| Cabinet weight(kg) | ≈6.5kg |
| Input Power Frequency(Hz) | 50/60 |
| Input voltage(Nominal)(V) | 220V(110/110-220) |
Multi-function fixed, intelligent positioning, gap adjustable
The entire screen seamlessly, can be quickly installed and removed
Splicing gap flatness <0.1mm

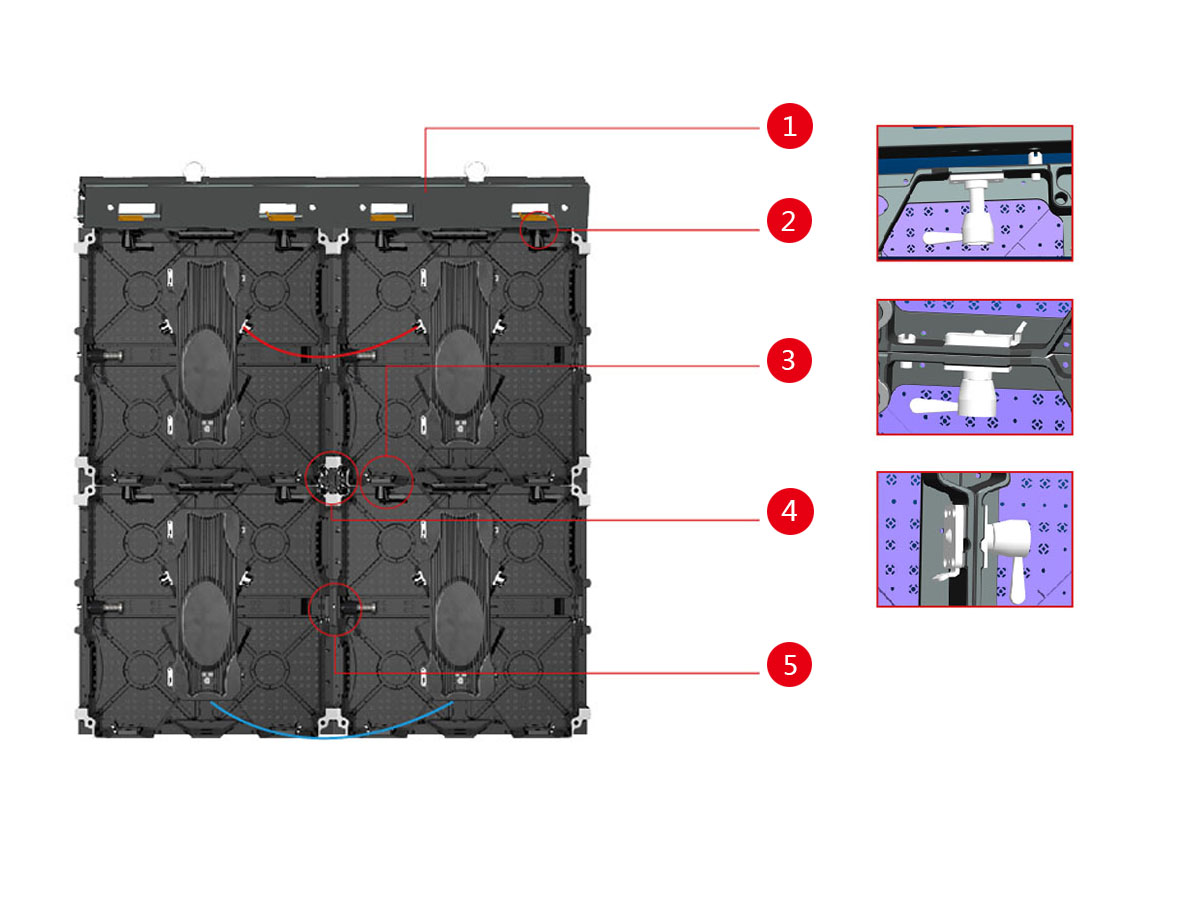

1. Adjustable Hanging Bracket.
2. Connection detail between hanging bracket and cabinets.
3. Connectiong detail between cabinets (Upper & Lower).
4. Mounting Bracket.
5. Connection detail between cabinets (Left & Right).
