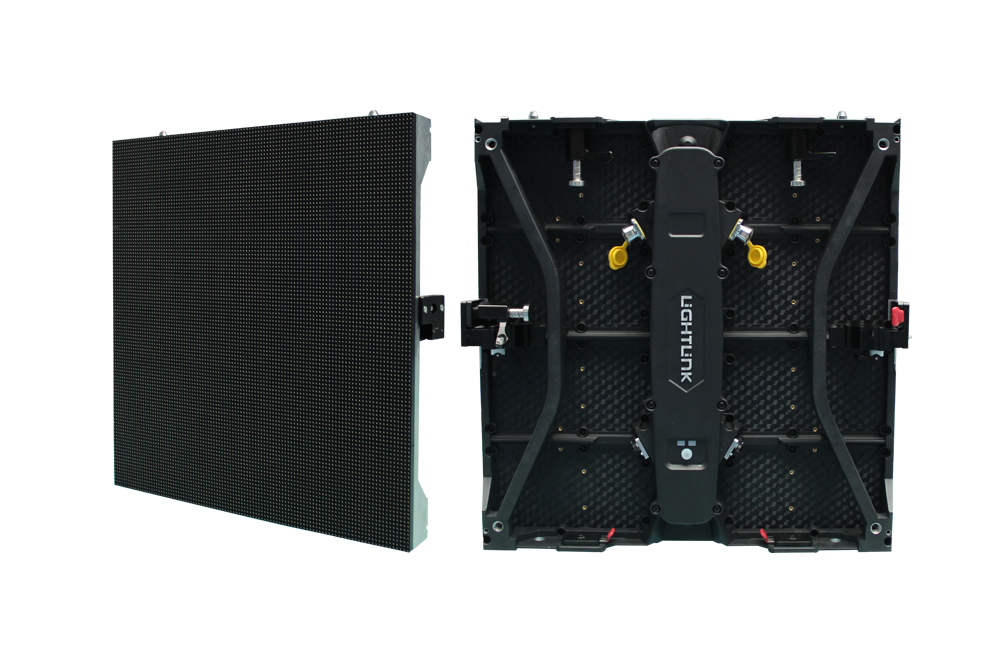

LR-PLUS Arc

Product type: LR-PLUS Arc

Pixel pitch: indoor 3.9; outdoor 3.9/4.8/5.9mm

Brightness: indoor 1000nit; outdoor 3000nits / 5500nits

Cabinet material: Die Cast Aluminum

Product features

1. With all the features of original LR-PLUS series but can be spliced as curved led screen

for stage design needs;

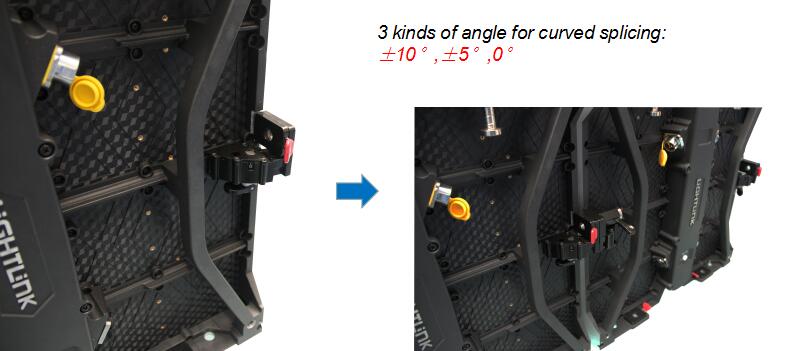

2. 3 kinds of angle can be adjusted to different arc: ±10°,±5°,±0°；

3. Moduled can be replaced directly;

4. Outdoor series with great waterproof IP65 which can protect the screen from accidentally

spilled drinks and rain, and guarantee the activities smoothly;

Parameters	Indoor	Outdoor
Pixel Pitch(mm)	3.9	3.9	4.8	5.9
LED type	SMD 1921 3 IN 1	SMD 1921 3 IN 1	SMD 1921 3 IN 1	SMD 1921 3 IN 1
Pixel per Module（Pixels/㎡）	65,536	65,536	43,264	28,235
Module Size（mm）	500*125	500*125	500*125	500*125
Brightness（cd/㎡）	1000	3000/5500	3000/5500	3000/5500
Viewing Angle（H/V）	H:140/V:100	H:140/V:100	H:140/V:100	H:140/V:100
Cabinet size（mm*mm）	50050065	50050065	50050065	50050065
Cabinet Weight（kg）	≈7.2kg	≈7.5kg	≈7.5kg	≈7.5kg
Display Refresh Rate（Hz）	≥1920/3840	≥1920/3840	≥1920/3840	≥1920/3840
Input Power Frequency（Hz）	50/60	50/60	50/60	50/60
Input Voltage(Nomina)（V）	AC110,220,110-240	AC110,220,110-240	AC110,220,110-240	AC110,220,110-240
Input Power(Max)（W/㎡）	≈600	≈600	≈600	≈600
Input Power(Aveerage)（W/㎡）	≈300	≈300	≈300	≈300
Lifepan（H)	≥50,000	≥50,000	≥50,000	≥50,000

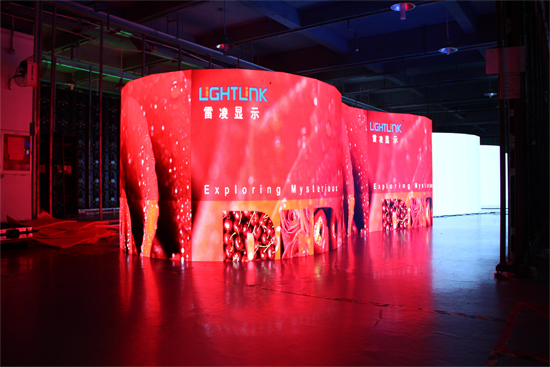

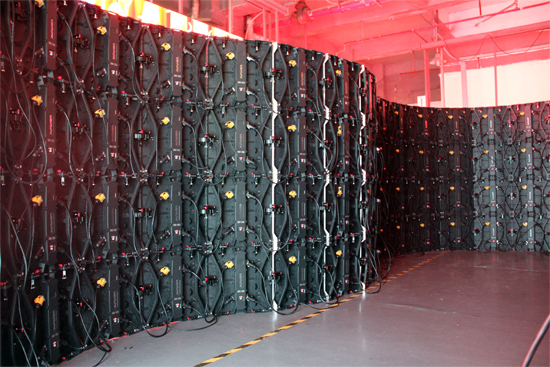

Effect in practice
