Product type: LR-PLUS
Pixel pitch: 3.9mm/4.8mm/5.9mm
Brightness: 3000nits-5500nits
Cabinet material: Die Cast Aluminum
1. Strong versatility both for indoor/ outdoor / floor screen
2. Upgrade the design for module disassembly (better than LR-Pro)

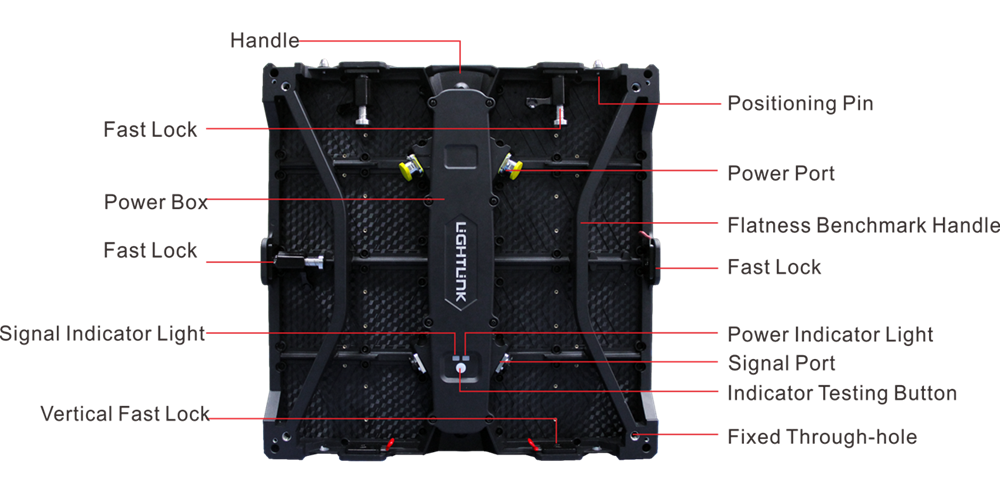

3. Don’t need open the back cover and support arc installation by arc fast lock
4. Replace the module directly
5. IP65 waterproof degree can protect the screen from accidentally spilled drinks and rain, and guarantee the activities smoothly.
Arc design is available for this model: maximum angle 10°per side
Parameters
Value
Pixel Pitch(mm)
3.9
4.8(Dancing floor)
5.9(Dancing floor)
LED type
SMD 1921
SMD 1921
SMD 1921
Pixel per Module(Pixels/㎡)
65,536
43,264
28,235
Module Size(mm)
500*125
500*125
500*125
Brightness(cd/㎡)
3000/5500
3000/5500
3000/5500
Viewing Angle(H/V)
H:140/V:100
H:140/V:100
H:140/V:100
Cabinet size(mm*mm)
500*500*65
500*500*65
500*500*65
Cabinet Weight(kg)
≈7.5kg
≈7.5kg
≈7.5kg
Display Refresh Rate(Hz)
≥1920/3840
≥1920/3840
≥1920/3840
Input Power Frequency(Hz)
50/60
50/60
50/60
Input Voltage(Nomina)(V)
AC110,220,110-240
AC110,220,110-240
AC110,220,110-240
Input Power(Max)(W/㎡)
≈600
≈600
≈600
Input Power(Aveerage)(W/㎡)
≈300
≈300
≈300
Lifepan(H)
≥50,000
≥50,000
≥50,000
Great weight loading: max 1.5T/cabinet
2 colors available for freely choosing

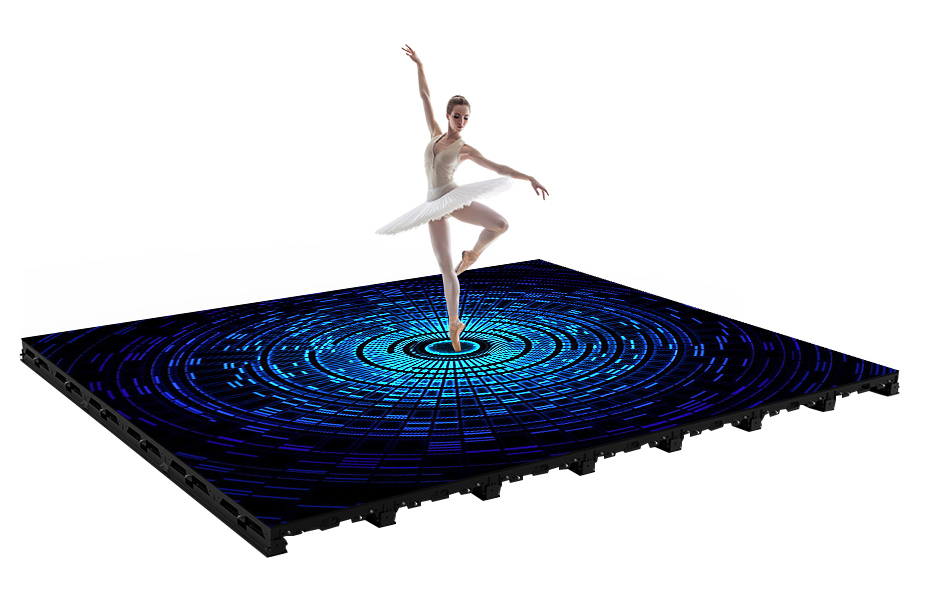

Meet the standard for using as LED dance floor or outdoor LED screen.

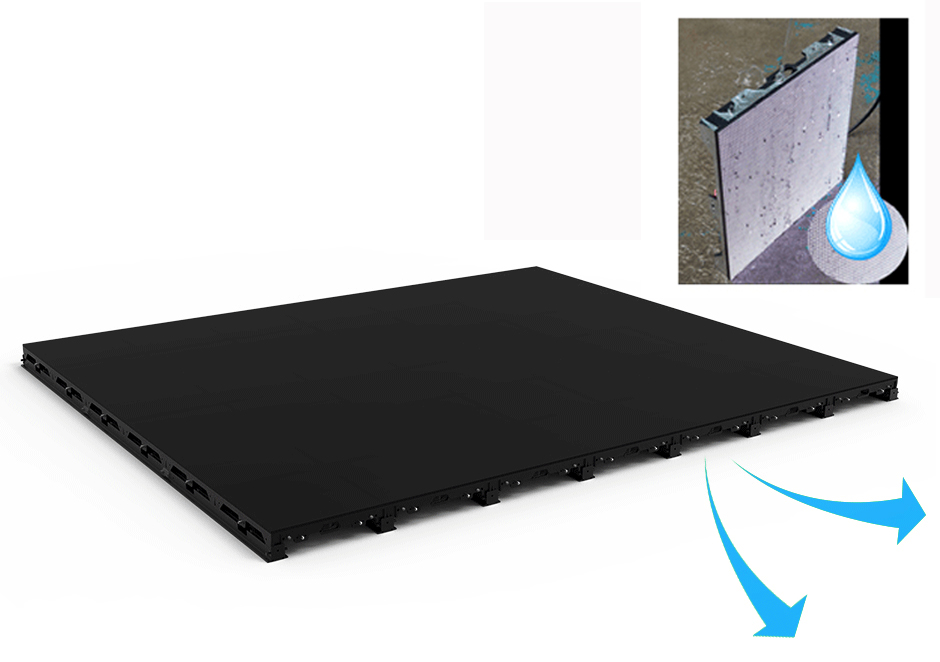

Waterproof Rate:IP65
protect the screen out of accidentally spilled drinks and rain
Excellent heat dispersion
Professional design of heat output channel
Make sure the heat can be discharged quickly and effectively
Different demands for indoor/outdoor/
LED dance floor/LED curved screen

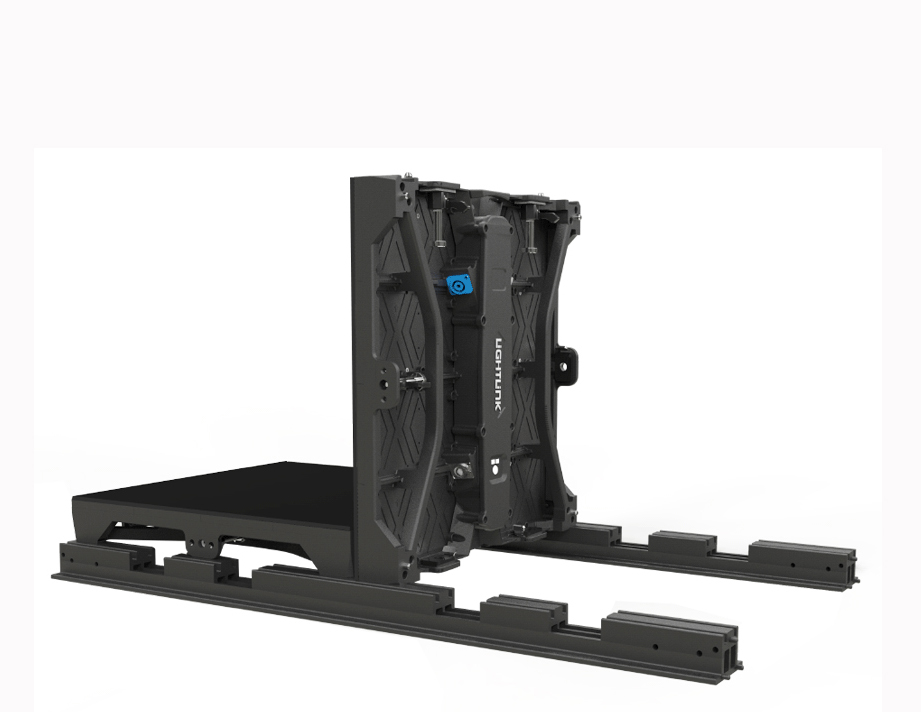

- More accurate by aluminum die casting cabinet and installed instantly
- 2 size guide rails available: 0.5m, 1m
