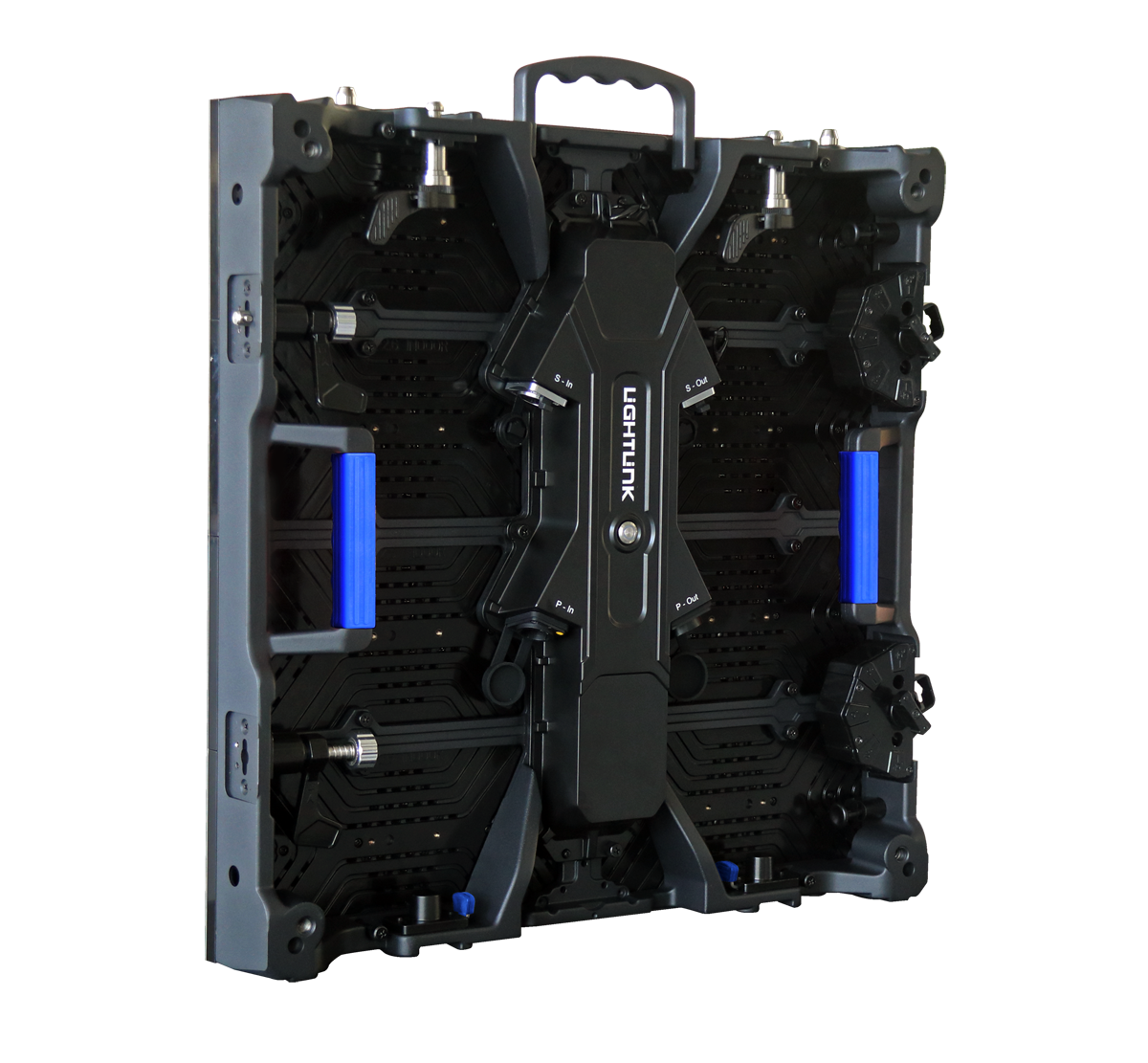

Product type: LR-Pro Ⅱ Arc
Pixel pitch: indoor 2.6/2.9/3.4/3.9/4.8mm; outdoor 3.91/4.8/5.95mm
Brightness: indoor 1000nits; outdoor 5000nits
Cabinet material: Die Cast Aluminum
1. Stylish and elegant design, seamless stitching, ultra-light weight, wireless modular design make maintenance more convenient;
2. Automatic color calibration, large viewing angle,wider range of audience, to meet the delicate color requirements;
3. Smart module with memory storage function and calibration data memory function, these functions could make the module save the calibration data in a timely manner and could be used directly after replace;
4. Independent power box can compatible with a variety of products, dual power backup could avoid black screen phenomenon;
5. Wireless modular components design is to achieve the plug-in connection and makes the working state of the cabinet more stable;

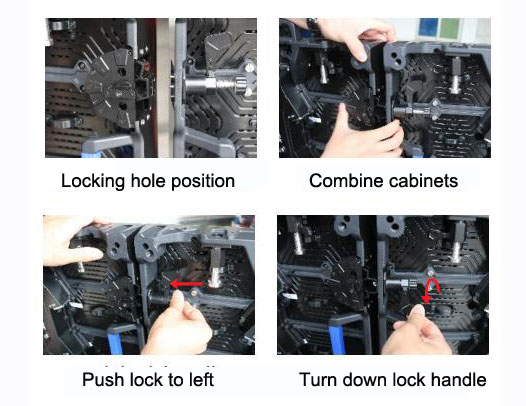

6. The easy operation of new type gear fast lock can not only install by single-person but also enhance both safety and work efficiency;
7. The design of the bulge at the bottom is to prevent direct contact with the module and the ground, reducing the chance of module damage;

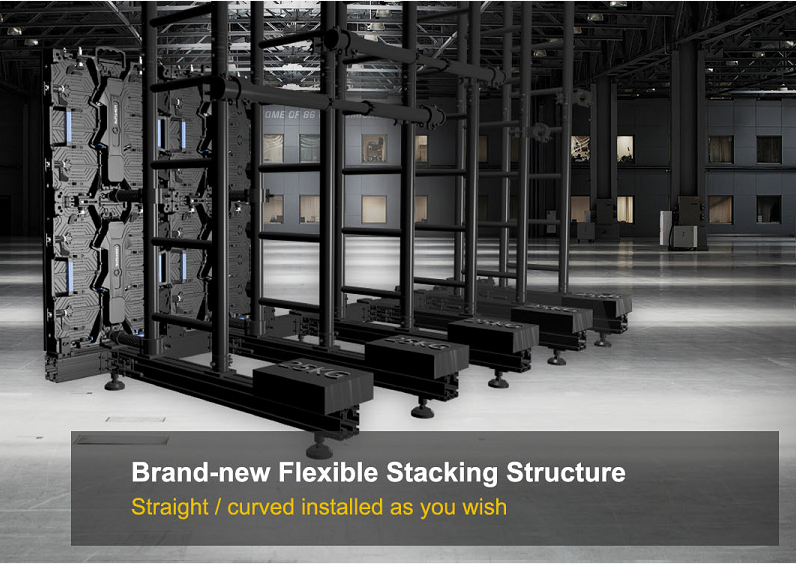

8. It can be served as curve screen by freely adjust degree to 0°,±5°,±10°
Parameters |
Indoor |
Outdoor |
|||||
Pixel pitch(mm) |
2.60 | 2.97 | 3.91 | 4.81 | 3.91 | 4.8077 | 5.95 |
LED type |
SMD1515 |
SMD1515 |
SMD1515 |
SMD1515 |
SMD1921 |
SMD1921 |
SMD1921 |
Module resolution(Pixels) | 192*48 | 168*42 | 128*32 | 104*26 | 128*32 | 104*26 | 84*21 |
Module size(mm) |
500*125 |
500*125 |
500*125 |
500*125 |
500*125 |
500*125 |
500*125 |
Pixel Density(Pixels/㎡) |
147,456 | 112,896 | 65,536 | 43,264 | 65,536 | 43,264 | 28,224 |
Brightness(cd/㎡) |
1000 | 1000 | 1000 | 1000 | 5000 |
5000 |
5000 |
Viewing angle(H/V) |
H:140 V:120 |
H:140 V:120 |
H:140 V:120 |
H:140 V:120 |
H:140 V:120 |
H:140 V:120 |
H:140 V:120 |
Cabinet size(W*H*D mm) |
500*500*65 |
500*500*65 |
500*500*65 |
500*500*65 |
500*500*65 |
500*500*65 |
500*500*65 |
Cabinet material |
Aluminum die casting |
Aluminum die casting |
Aluminum die casting |
Aluminum die casting |
Aluminum die casting |
Aluminum die casting |
Aluminum die casting |
Cabinet weight(kg) |
7.8 | 7.8 | 7.8 | 7.8 | 8.5 | 8.5 | 8.5 |
Refresh Rate(Hz) |
≥1920/3840 |
≥1920/3840 |
≥1920/3840 |
≥1920/3840 |
≥1920/3840 |
≥1920/3840 |
≥1920/3840 |
Input voltage(Nominal)(V) |
AC100-240v |
AC220V (110, 110-220) |
AC220V (110, 110-220) |
AC100-240v |
AC220V (110, 110-220) |
AC220V (110, 110-220) |
AC220V (110, 110-220) |
Input Power Frequency(Hz) |
50/60(Hz) |
50/60(Hz) |
50/60(Hz) |
50/60(Hz) |
50/60(Hz) |
50/60(Hz) |
50/60(Hz) |
Max Input Power(W/㎡) |
≈150 |
≈150 |
≈150 |
≈150 |
≈180 |
≈180 |
≈180 |
Average Input Power(W/㎡) |
≈75 |
≈75 |
≈75 |
≈75 |
≈90 |
≈90 |
≈90 |
Lifespan(H) |
≥50,000 |
≥50,000 |
≥50,000 |
≥50,000 |
≥50,000 |
≥50,000 |
≥50,000 |
