Product type: LR6
Pixel pitch: 6.9mm
Brightness: 3000nits-7200nits
Cabinet material: diecast aluminum
Using the flexible assembly structure makes the cabinet ultra-simple, ultra-thin and ultra-light
Using the latest anti-collision plate technology guarantees stable and longer life in the rental process
Patented fanless design with no noise and low power consumption, can be used in the temperature range from -30 ℃ to 60 ℃
Outdoor high-definition,high-brightness and smaller dot pitch make more delicate picture
Can be customized arc screen: According to customer demand for custom-designed hypotenuse, splicing curved screen
Seamless assembly technology: Cabinet and module gap tolerance control in 0.1mm, screen flat splicing distance control in the 0.2mm
Parameters | Value |
Product type | OLR6 |
Pixel pitch(mm) | 6.9 |
Pixel configuration | SMD3535 |
Module size(mm) | 250×250 |
Cabinet size(W*H*D mm) | 500×500×65 |
Pixel Density(Pixels/㎡) | 20,738 |
Brightness(cd/㎡) | ≥4500 |
Cabinet Material | Diecast Aluminum |
Cabinet weight(kg) | ≈7.5kg |
Input Power Frequency(Hz) | 50/60 |
Input voltage(Nominal)(V) | 220V(110/110-220) |
Multi-function fixed, intelligent positioning, gap adjustable
The entire screen seamlessly, can be quickly installed and removed
Splicing gap flatness <0.1mm

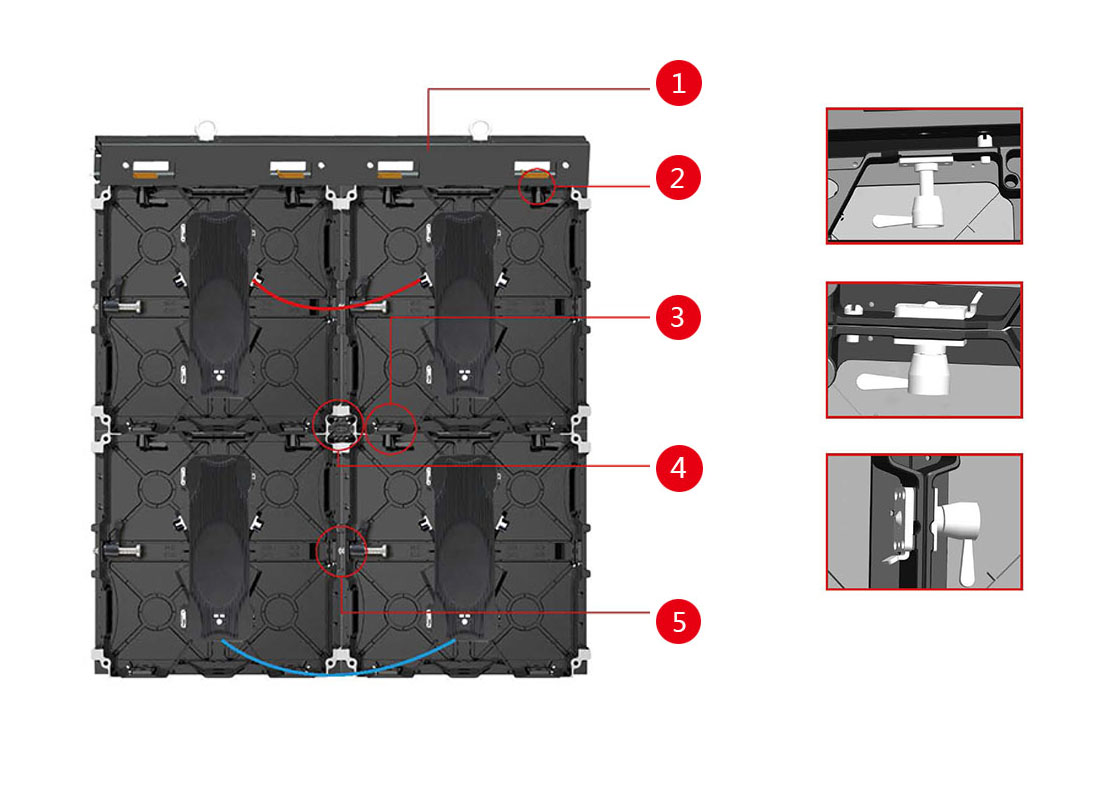

1. Adjustable Hanging Bracket.
2. Connection detail between hanging bracket and cabinets.
3. Connectiong detail between cabinets (Upper & Lower).
4. Mounting Bracket.
5. Connection detail between cabinets (Left & Right).
