LM Pro5

Product type: LM Pro5


Pixel pitch: 5.9mm


Brightness: 3000nits-5500nits


Cabinet material: Die Cast Aluminum

The birth of LM-PRO just for achieving our customer’s every stage deductive value.


It’s not only pursuing the perfect appearance, but also for a better stage display effect: to make sure each circuit is well-arranged, each screw is solid and reliable;

every process is tempered;our pursuit is to let each of your activities is vivid, beautiful and perfect…

Parameters Value
Product type LM-Pro5
Pixel pitch(mm) 5.9
Pixel configuration SMD 3 IN 1
Pixel Density(Pixels/㎡) 28,235
Module size(mm) 500×125
Cabinet size(W*H*D mm) 500×1000×60
Brightness(cd/㎡) 4000 ≥ & ≥3000
Viewing Angle(H/V) H:140/V:100
Display Refrest Rate(Hz) ≥ 1920
Cabinet Material Die Cast Aluminum
Cabinet weight(kg) ≈11kg
Input Power Frequency(Hz) 50/60
Input voltage(Nominal)(V) 220V(110/110-220)
Input Power(Max)(W/㎡) 400(800)
Input Power(Average)(W/㎡) 200(400)
Lifespan(H) ≥50,000


1.Different from the traditional aluminum cabinet, the die-casting aluminum cabinet stitching has higher accuracy, it’s disassembly

and maintenance is extremely convenient.


2.Point-by-point calibration and high-end display technology is with a  high refresh rate, high gray level, high contrast and vivid

showing effect.


3.Patented design without fan achieve no noise, low power consumption, and can be used in temperature range of -30-60 degrees.

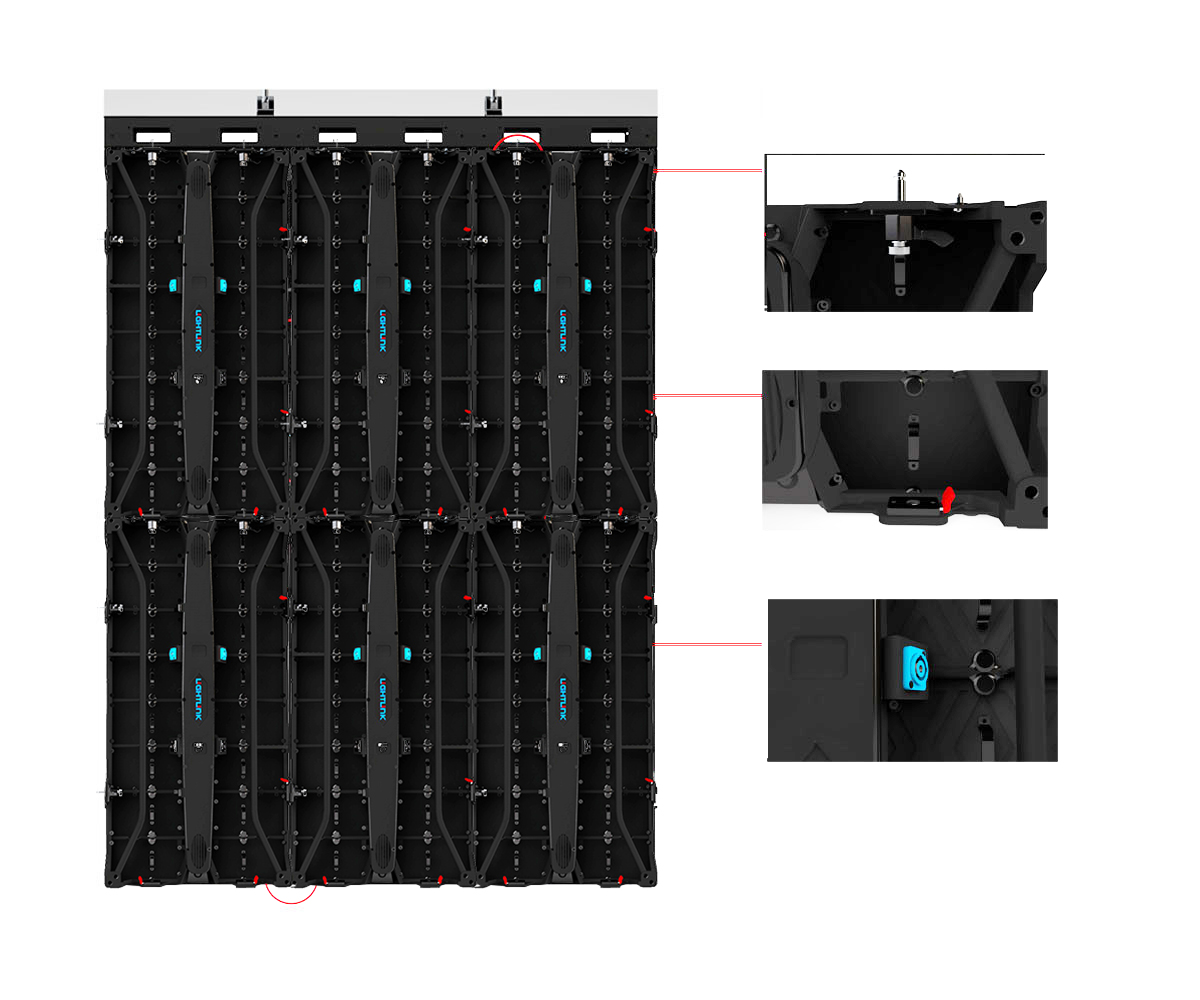

4.The design of straight edge or beveled edges can be use to create a curved screen.


5. Permeability is better and cabinet is thinner.


6.The size of 500X1000 is the ideal choice use in stage background, bar, wedding ceremony and other applications.
