Product type: Glory T
Pixel pitch: 3.9mm /4.8mm /5.9mm
Brightness: 5000/3000nits
Cabinet material: Carbon fiber & Magnesium Alloy
1.Carbon fiber design.

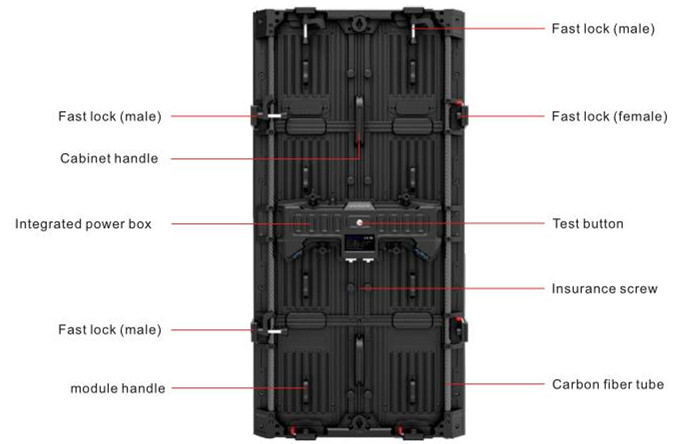

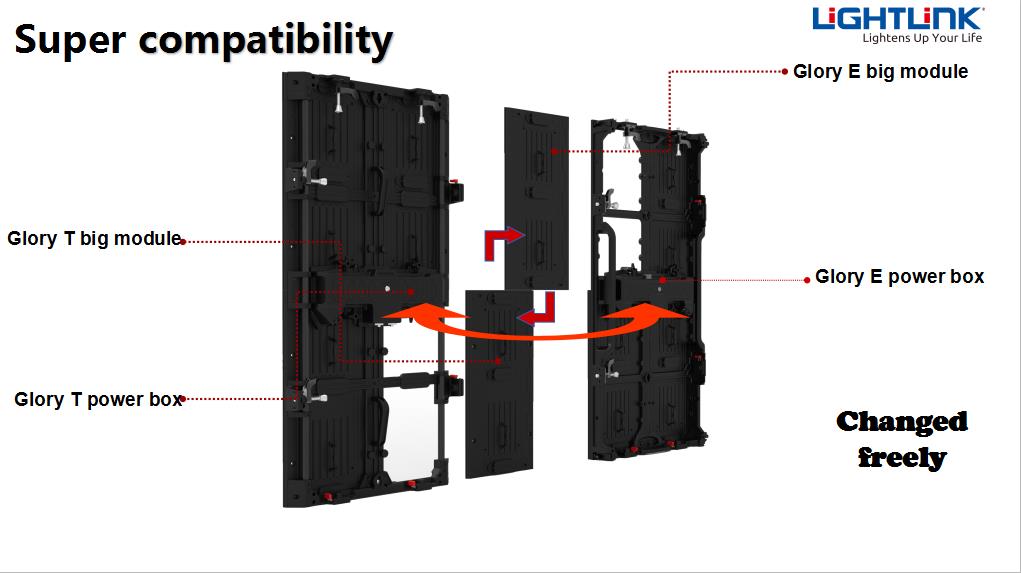

2.Integrated power box compatible withe several series.

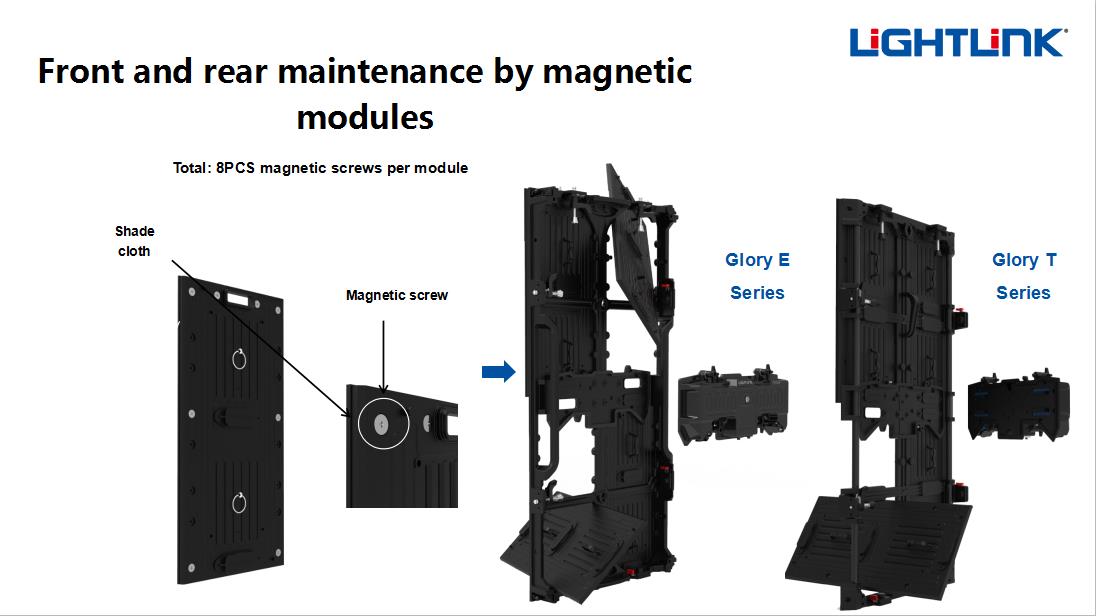

3.Front and rear maintenance.
4.Large module format(250×500mm) can be mounted vertically and horizontally.
5.Anti-collision PCB resistant to 8kgs impact force.
6.Tool-free parts replacement.
7.Available in mesh and/or 90° installation for cube design.
| Parameters | Value(outdoor) | ||
| Product type | 3.9 | 4.8 | 5.9 |
| Pixel configuration | SMD 1921 3 in 1 | SMD 1921 3 in 1 | SMD 1921 3 in 1 |
| Module resolution | 64*128 | 52*104 | 42*84 |
| Module Size(mm) | 250*500 | 250*500 | 250*500 |
| Pixel Density(Pixels/m2) | 65,536 | 43,264 | 28,224 |
| Brightness（cd/m2） | 5000/3000 | 5000/3000 | 5000/3000 |
| Viewing Angle(H/V) | H:140 V:120 | H:140 V:120 | H:140 V:120 |
| Cabinet Size(mm) |
A:500*500*72 B: 500*1000*72 |
A:500*500*72 B:500*1000*72 |
A:500*500*72 B:500*1000*72 |
| Cabinet Material | Carbon fiber & Magnesium alloy |
Carbon fiber & Magnesium alloy |
Carbon fiber & Magnesium alloy |
| Cabinet weight(kg) | A≈6.5 B≈9.8 | A≈6.5 B≈9.8 | A≈6.5 B≈9.8 |
| Refresh rate(Hz) | ≥1920/3840 | ≥1920/3840 | ≥1920/3840 |
| Input voltage(V) | AC 100-240 | AC 100-240 | AC 100-240 |
| Input power frequency(Hz) | 50/60 | 50/60 | 50/60 |
| Max Input Power(W/m2) | ≈1000/600 | ≈1000/600 | ≈1000/600 |
| Average Input Power(W/m2) | ≈1000/600 | ≈1000/600 | ≈1000/600 |
| Lifespan(H) | ≥50000 | ≥50000 | ≥50000 |
