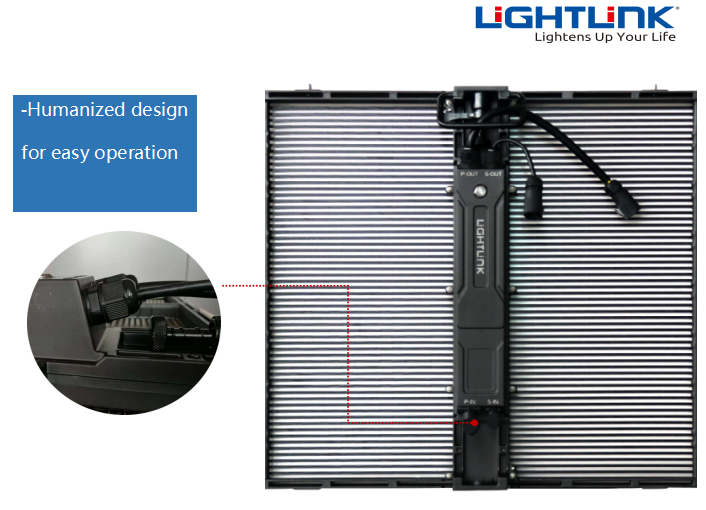

Product type: LX-T
Pixel pitch: Horizontal:3.9 Vertical:7.8
Brightness:1500-3000nits
Cabinet material: Automaticly 100 levels
1. The product design is simple but graceful which shows the sense of modern and technology.
2. LX-T has the ultra transparency(54%) which can meet the lighting requirements of building.And it also will not ruin the beauty of the building appearance.
3. LX-T has the unique display effect that is third dimension, It can make the advertisement more artistic.
4. It inspires designer to present unique stage,presentation of great transparency, vivid color and technology makes performance outstanding and stylistic.
5. It is really suitable for media building and creates a new way of outdoor media transmission which can be seen as a new market demand.

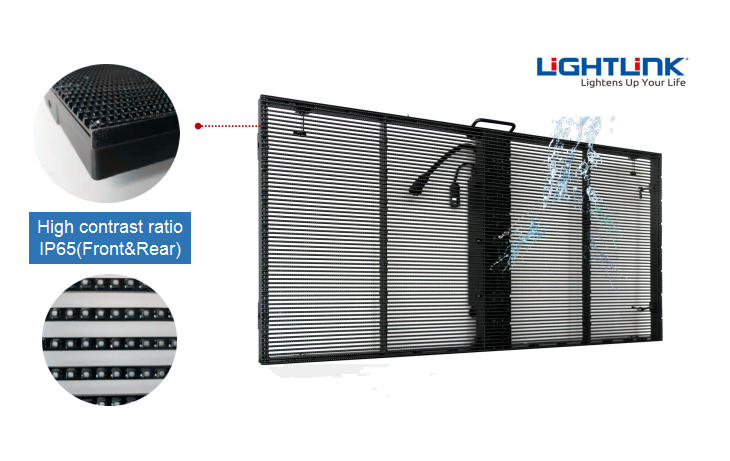

6. Rigid process of glue potting which can protect electronic components from oxidation/static electricity/dust/water, and make it still work well even under the serious environment.
|
Parameters |
Value |
|
Pixel pitch（mm） |
Horizontal:3.9 Vertical:7.8 |
|
Pixel configuration |
SMD 1921 |
|
Module resolution(Pixels) |
128*8 |
|
Module size(mm) |
500*62.5 |
|
Pixel Density（Pixels/㎡) |
32,768 |
|
Brightness(cd/㎡) |
1,500-3,000 |
|
Viewing angle(H/V) |
H:160; V:100 |
|

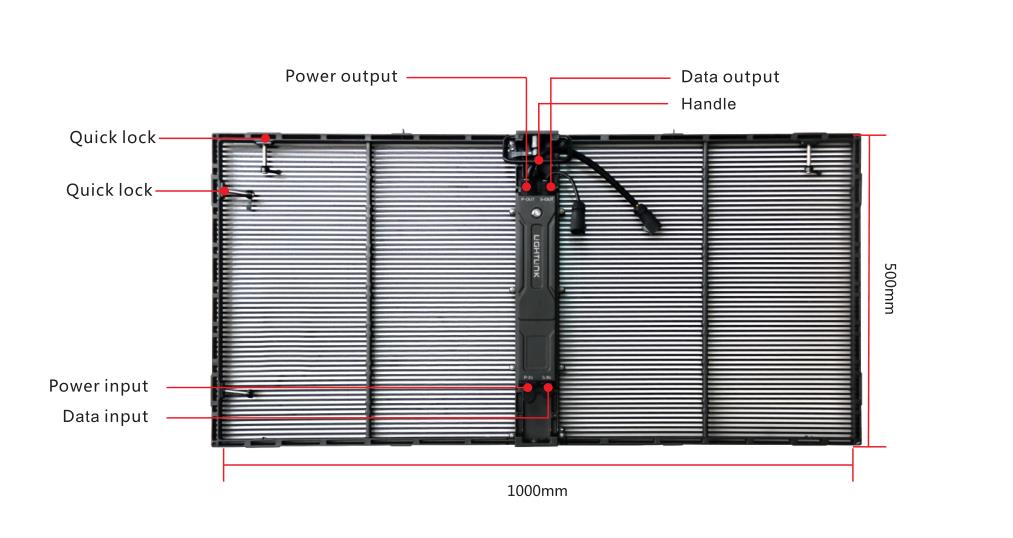

Cabinet size(W*H*D mm) |
500*1000*68 |
|
Cabinet Material |
Aluminum die casting |
|
Cabinet weight(kg) |
≈6kg |
|
Refresh Rate(Hz) |
≥1920/3840 |
|
Input voltage(Nominal)(V) |
AC100-240 |
|
Input Power Frequency(Hz) |
50/60 |
|
Max Input Power(W/㎡) |
≈400 |
|
Average Input Power(W/㎡) |
≈200 |
|
Lifespan(H) |
≥50,000 |
