Product type: LR-AC
Pixel pitch: 3.91mm
Brightness: 1000nits
Cabinet material: magnesium alloy
- Designed with artistic & technological appearance, seamless stitching between cabinets, and ultra-light 5.6kg ONLY;

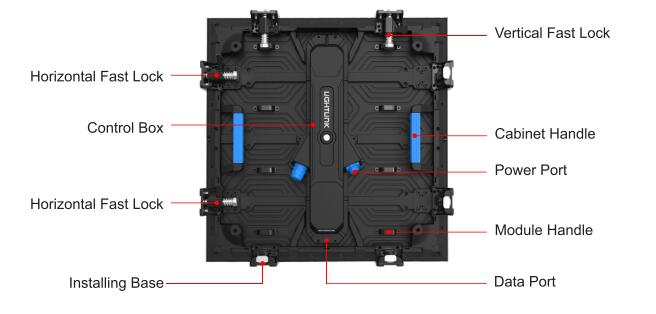

- High efficient maintenance with independent power box which can be dismantled/replaced directly, and seamless stitching between cabinets makes image perfect;
- New inline port of CAT cable makes signal stable and efficient;

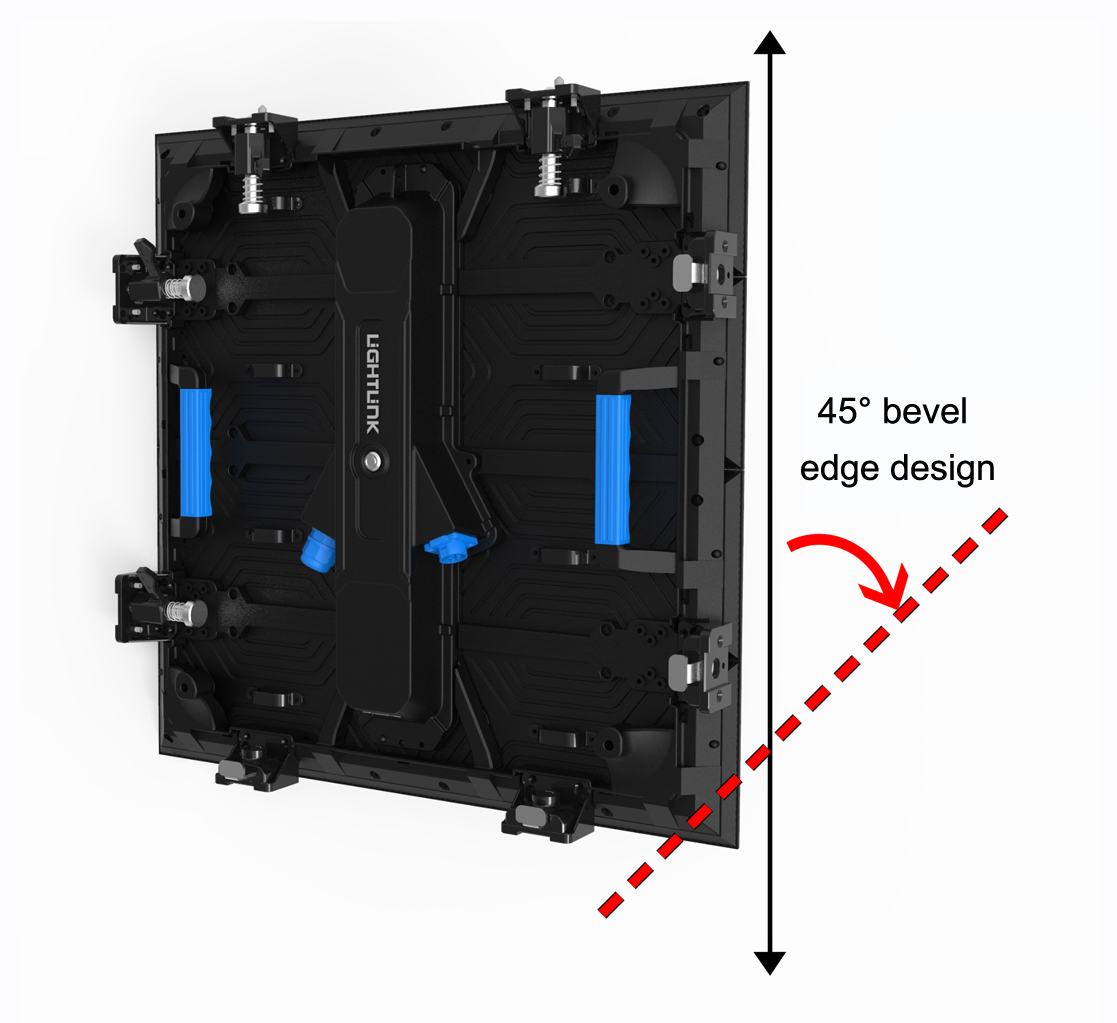

- 45° bevel edge design of led cabinet can be spliced as right-angled / arc shape which can meet varies occasions to install and easy for building creative stage;
- PCB board applied embedded bottom shell design which can prevent dust & water efficiently, and ensure long lifespan.
|
Parameters |
Value |
|
Pixel pitch（mm） |
3.91 |
|
Pixel configuration |
SMD2020 |
|
Module resolution(Pixels) |
128*32 |
|
Module size(mm) |
500*125 |
|
Pixel Density（Pixels/㎡) |
65536 |
|
Brightness(cd/㎡) |
1000 |
|
Viewing angle(H/V) |
H:140 V:120 |
|
Cabinet size(W*H*D mm) |
500*500*65 |
|
Cabinet Material |
magnesium alloy |
|
Cabinet weight(kg) |
5.6 |
|
Refresh Rate(Hz) |
≥1920/3840 |
|
Input voltage(Nominal)(V) |
AC220V(110,110-220) |
|
Input Power Frequency(Hz) |
50/60(Hz) |
|
Max Input Power(W/㎡) |
≈150 |
|
Average Input Power(W/㎡) |
≈75 |
|
Lifespan(H) |
≥50,000 |
