Product type: LR-FE Series
Pixel Pitch: 2.9mm、3.9mm
Brightness: 800nits、800nits
Cabinet material: Aluminium Alloy
1. Die cast aluminum cabinet with high precise for seamless splicing and perfect displaying.
2. Front maintenance with "zero distance" between walls & screen would solve the problem of maintenance space and much occupation.
3. Ultra-thin cabinet only 55mm, is easy to install.

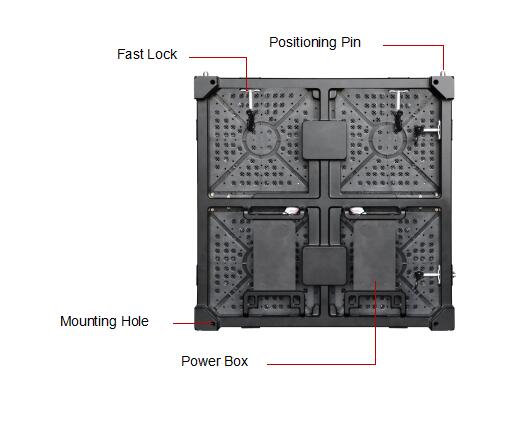

4. LR-FE series adopt magnetic module design to achieve fast maintenance from the front.
|
Parameters |
Indoor |
|
|
Pixel Pitch（mm） |
2.9 | 3.9 |
|
Pixel Configuration |
SMD1515 | SMD2121 |
|
Module Size（mm） |
250*250 | 250*250 |
|
Pixel Density/ (dot/m2) |
112,896 | 65,536 |
|
Viewing Angle（H/V） |
H:140/V:120 |
H:140/V:120 |
|
Brightness（cd/㎡） |
800 | 800 |
|
Cabinet Size（mm*mm） |
500*500*55 |
500*500*55 |
|
Cabinet Weight(kg) |
≈5.5kg |
≈5.5kg |
|
Cabinet Material |
Aluminum die-cast |
Aluminum die-cast |
|
Display Refresh Rate（Hz） |
≥2,800 |
≥2,800 |
|
Input Power Frequency(Hz) |
≥60 |
≥60 |
|
Input Voltage (Nominal)（V） |
AC220 |
AC220 |
|
Input Power (Max)（W/㎡） |
≈600 |
≈600 |
|
Input Power (Average)（W/㎡） |
≈150 |
≈150 |
|
Gray Scale |
65,536(16bit） |
65,536(16bit） |
|
Brightness Level |
manually /automatically 100 levels |
manually /automatically 100 levels |
|
Control Mode |
synchronize |
synchronize |
|
Lifespan（H) |
≥50,000 |
≥50,000 |
|
Maintenance mode |
Front maintenance |
Front maintenance |
