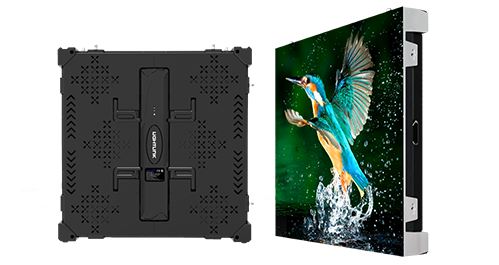

HDS Ⅱ series

Product type: HDSⅡ Series

Pixel Pitch: 1.579mm、1.875mm 2.50mm

Brightness: 800nits、800nits

Cabinet material: die-cast aluminum

LIGHTLINK HDS Ⅱ Feature

1.Higher contrast with 3-in-1 Black LED;

2.Dual power and signal backup system, can efficiently avoid black screen and signal faults;

3.Ultra-thin, ultra-light panel for less space consuming storage and installations;

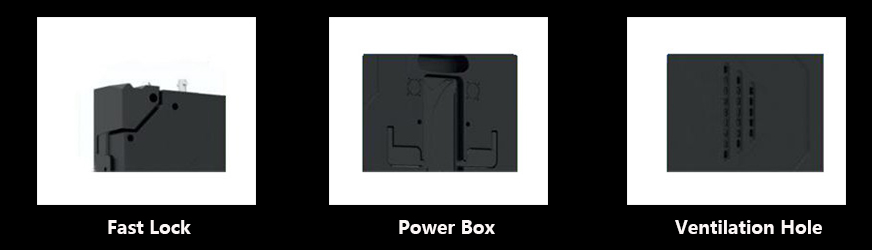

4.Magnetic modules,easy to install and make cabinet more lightweight;

5.Allen-wrench sidekicks for more reliable gap prevention;

Parameters	Value(indoor)
Product type	1.579	1.879	2.50
Pixel configuration	SMD 1010/1212	SMD 1515	SMD 2121
Module resolution	152*76	129*64	96*96
Module Size(mm)	240*120	240*120	240*240
Pixel Density(Pixels/m2)	401,111	284,444	160,000
Brightness（cd/m2）	800	800	800
Viewing Angle(H/V)	H:160 V:160	H:160 V:160	H:160 V:160

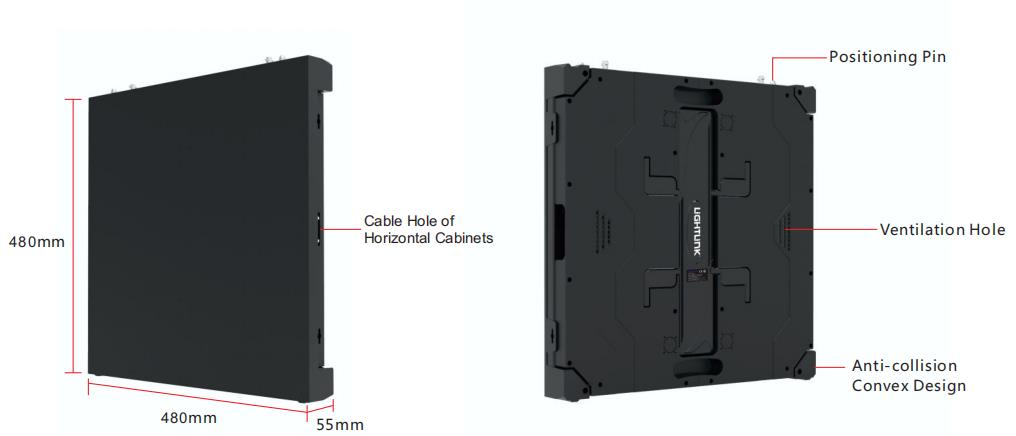

Cabinet Size(mm)	48048055	48048055	48048055
Cabinet Material	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum
Cabinet weight(kg)	≈5kg	≈5kg	≈5kg
Refresh rate(Hz)	≥2880	≥2880	≥2880
Input voltage(V)	AC 100-240	AC 100-240	AC 100-240
Input power frequency(Hz)	50/60	50/60	50/60
Max Input Power(W/m2)	≈600	≈600	≈600
Average Input Power(W/m2)	≈300	≈300	≈300
Lifespan(H)	≥10,0000	≥10,0000	≥10,0000

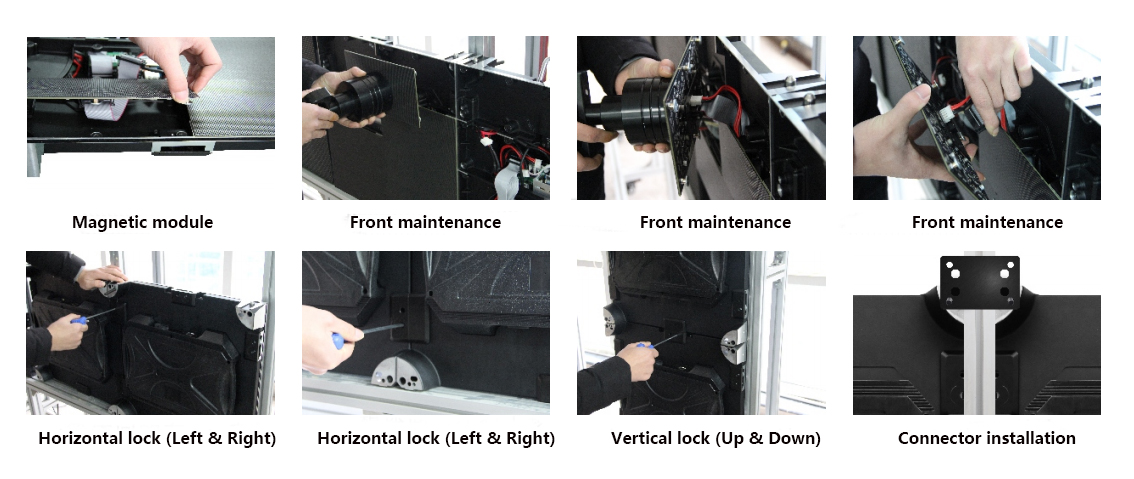

INSTALLATION
