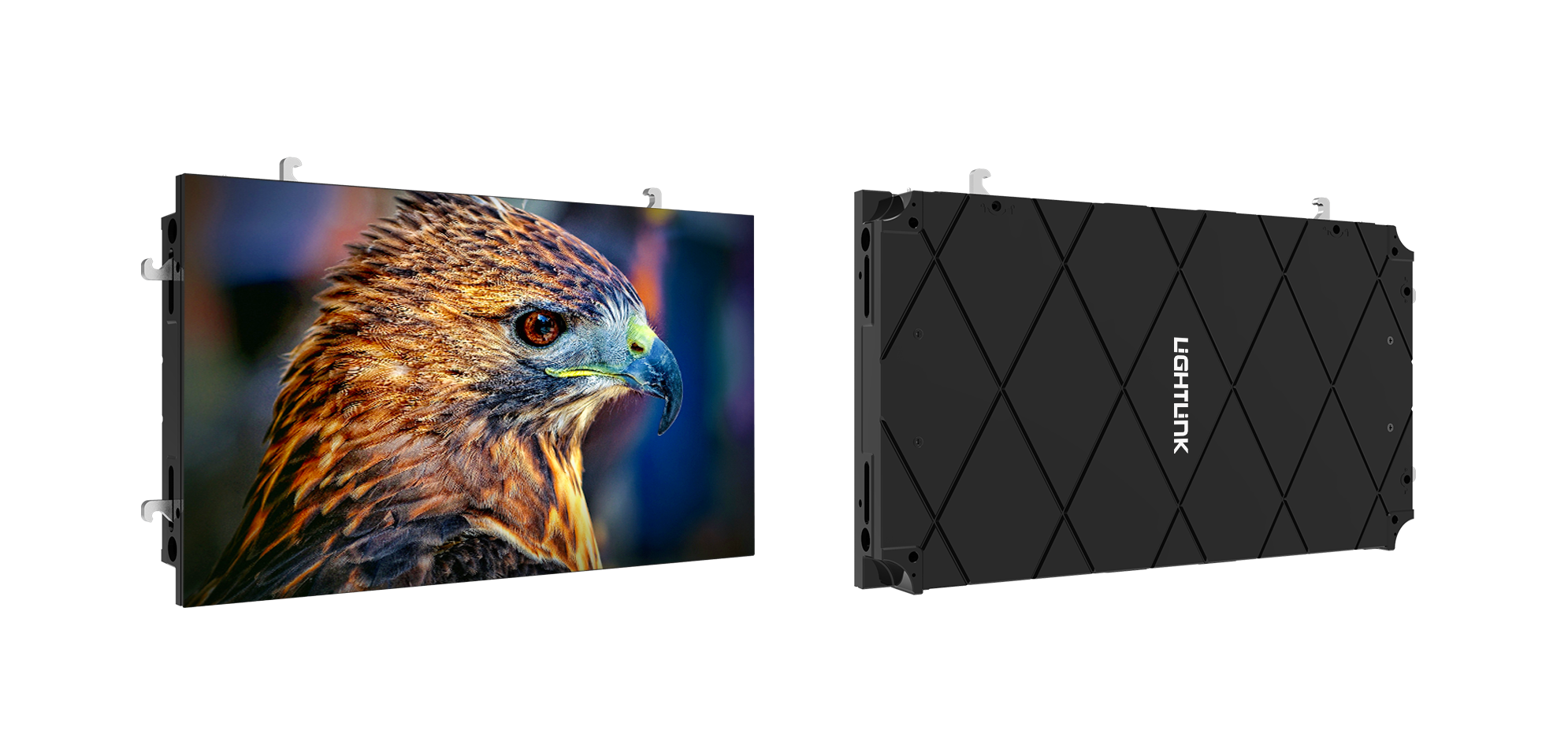

Product type: HDG Ⅱ Series
Pixel Pitch: 0.93mm、1.25mm、1.56mm、1.87mm
Brightness: 800nits、800nits
Cabinet material: die-cast aluminum
1. Applied black LEDs 3-in1 with higher contrast ratio and color reproduction, presenting a perfect image.

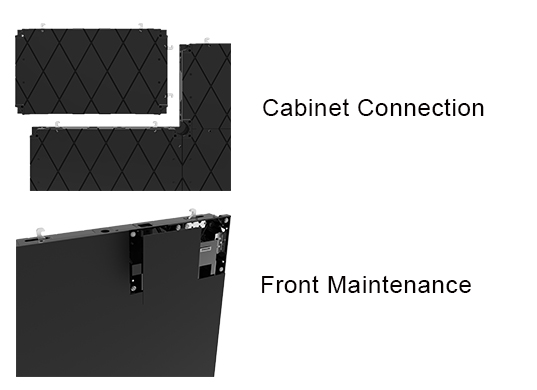

2. Ultra-light & Ultra-thin for saving installation space and front maintenance for convenient assemble & dismantle.
3. Standard ratio 16:9, HD display 2k/4k/8k perfect splicing, presenting a perfect visual image.

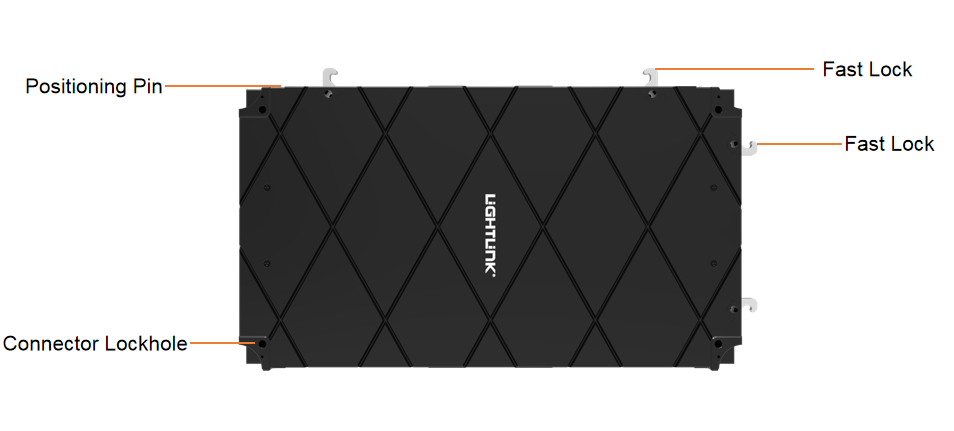

4. Truly seamless splicing, simple & convenient installation via fast lock for easy operation of a single person.
5. Wide viewing angle, high refresh rate, and high gray scale for every elaborate detail and exquisite image.
| Parameters | Value | |||
| Product type | 0.9375 | 1.25 | 1.5625 | 1.875 |
| Pixel configuration | SMD 0606 | SMD 1010 | SMD 1010/1212 | SMD 1515 |
| Module Size | 150*168.75 | 150*168.75 | 150*168.75 | 150*168.75 |
| Pixel Density(Pixels/m2) | 1,137,777 | 640,000 | 409,600 | 284,444 |
| Viewing Angle(H/V) | H:140/V:140 | H:140/V:140 | H:140/V:140 | H:140/V:140 |
| Brightness（cd/m2） | 600 | 600 | 600 | 600 |
| Cabinet Size(mm) | 600*337.5*60 | 600*337.5*60 | 600*337.5*60 | 600*337.5*60 |
| Cabinet weight(kg) | ≈6.5 | ≈6.5 | ≈6.5 | ≈6.5 |
| Cabinet Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Refresh rate(Hz) | ≥2,880 | ≥2,880 | ≥2880 | ≈6.5kg |
| Input power frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Input voltage (Nominal) (V) | AC100-240V | AC100-240V | AC100-240 | AC100-240 |
| Max Input Power(W/m2) | ≈700 | ≈700 | ≈700 | ≈700 |
| Average Input Power(W/m2) | ≈350 | ≈350 | ≈350 | ≈350 |
| Gray scale | ≥13Bit | ≥13Bit | ≥13Bit | ≥13Bit |
| Lifespan(H) | ≥50,000 | ≥50000 | ≥50000 | ≥50000 |
| Maintenance |
Front maintenance |
Front maintenance |
Front maintenance |
Front maintenance |

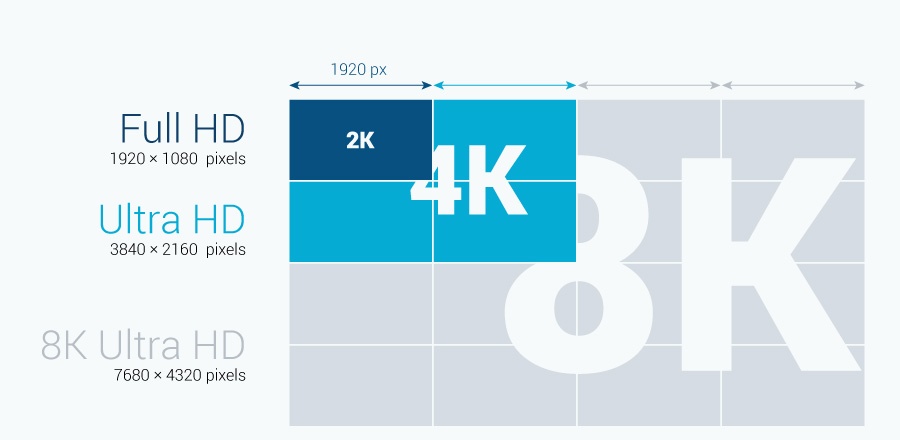

Easy to be spliced 2K,4K,8K perfectly.

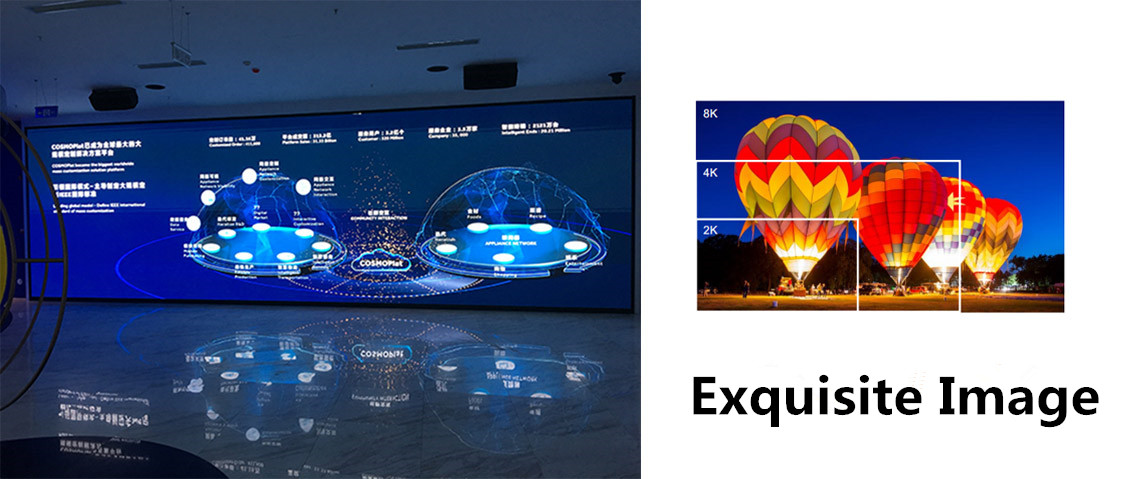

HD display 2k/4k/8k splicing with point by point ,presenting perfect visual range of golden ratio.
