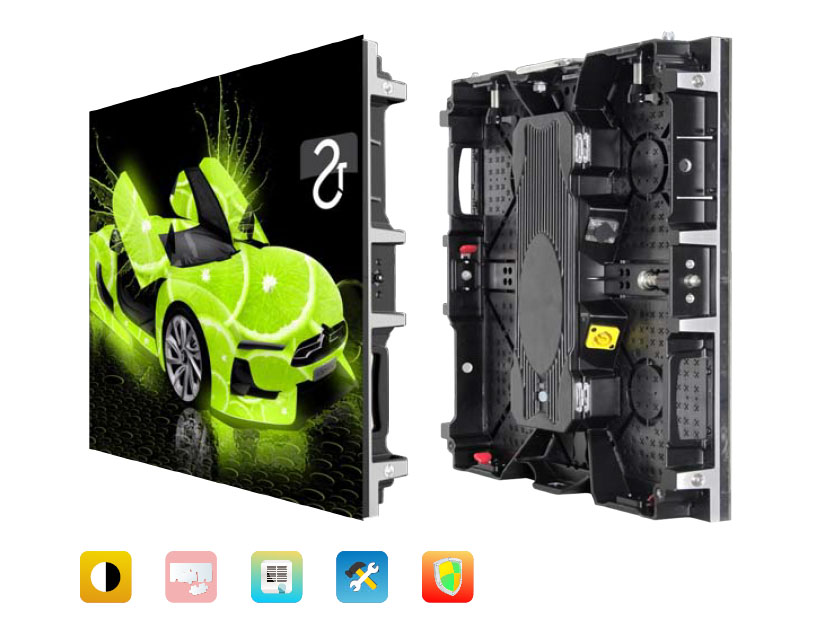

Product type: LR4
Pixel pitch: 4.8mm
Brightness: 1000nits-1300nits
Cabinet material: diecast aluminum
1. Fast and flexible installation
2. High-end display technology, the screen is more uniform and good
3. The use of the latest anti-collision plate technology guarantees good security
4. Gap adjustable, seamless stitching
5. No noise, low power consumption
6. Excellent thermal performance
Parameters | Value |
Product type | LR4 |
Pixel pitch(mm) | 4.8 |
Pixel configuration | SMD2020(Black LED) |
Module size(mm) | 250×250 |
Cabinet size(W*H*D mm) | 500×500×65 |
Pixel Density(Pixels/㎡) | 43,264 |
Brightness(cd/㎡) | 1000≤&≤1300 |
Cabinet Material | Diecast Aluminum |
Cabinet weight(kg) | ≈6.5kg |
Input Power Frequency(Hz) | 50/60 |
Input voltage(Nominal)(V) | 220V(110/110-220) |

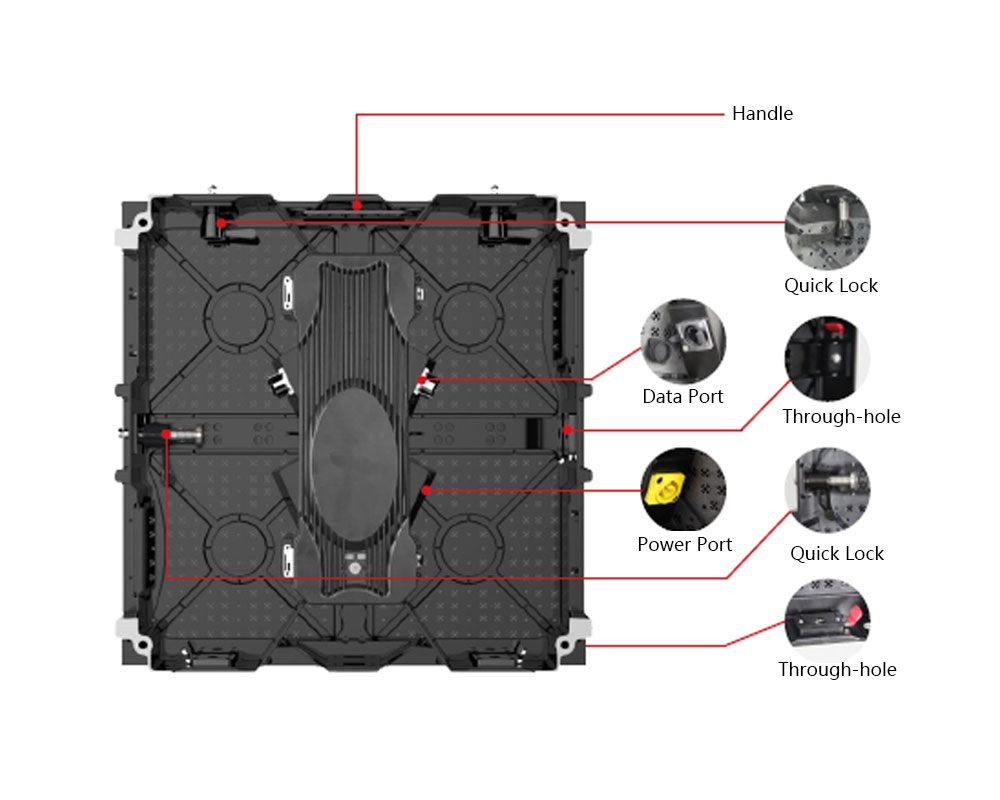

Multi-function fixed, intelligent positioning, gap adjustable
The entire screen seamlessly, can be quickly installed and removed
Splicing gap flatness <0.1mm

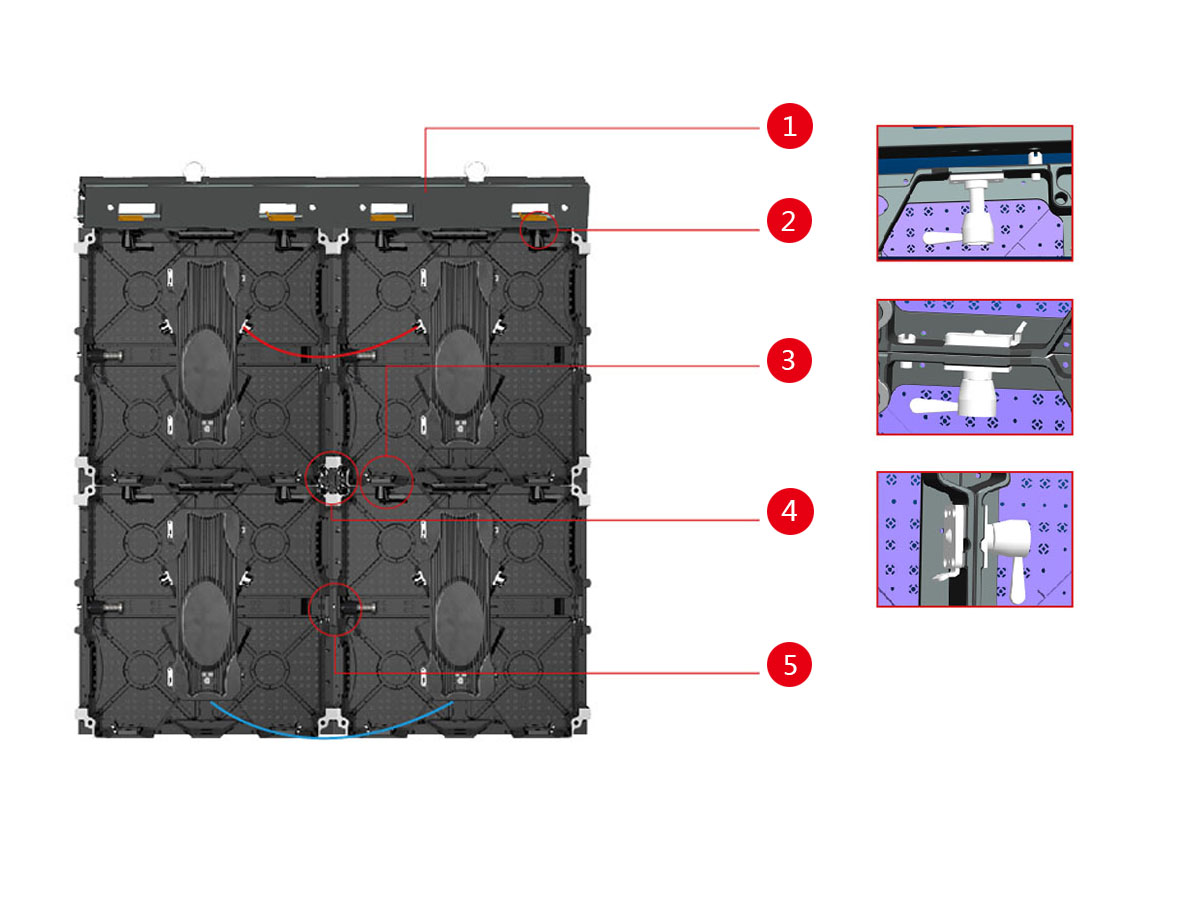

1. Adjustable Hanging Bracket.
2. Connection detail between hanging bracket and cabinets.
3. Connectiong detail between cabinets (Upper & Lower).
4. Mounting Bracket.
5. Connection detail between cabinets (Left & Right).
