CFC

Product type: CFC

Pixel pitch: 3.9mm/4.8mm/5.9mm/6.9mm/8.9mm

Brightness: 3000nits-5500nits/3000nits

Cabinet material: carbon fiber

Product Features

1. Carbon fiber cabinet with high precision and great flatness, also much lighter with 8kg/cabinet only;

2. Hollow cabinet design is available for creative design and applications;

3. Each module applied double bottom shells design which can be removed from the back for IC repairing;

4. Integrated power box design with current-sharing power back-up to save energy and avoid black screen;

5. Straight / bevel edge design is available for different installations in different occasions with actual demands;

6. New gear quick lock that only one person can finish the installation;

7. The size of 500X1000 is the ideal choice use in stage background, bar, wedding ceremony and other applications.

Parameters	Value
Pixel pitch（mm）	3.9	4.8	5.9	6.9	8.9
Pixel configuration	SMD 1921	SMD 1921	SMD 1921	SMD 1921	SMD 1921
Module resolution	128*64	104*52	84*42	72*36	56*28
Module size(mm)	500*250	500*250	500*250	500*250	500*250
Pixel Density（Pixels/㎡)	65 536	43 264	28 224	20 736	12 544
Brightness(cd/㎡)	5 000 3 000	5 000 3 000	5 000 3 000	5 000 3 000	5 000 3 000
Viewing angle(H/V)	H:140 V:120	H:140 V:120	H:140 V:120	H:140 V:120	H:140 V:120
Cabinet size(WHD mm)	500100070	500100070	500100070	500100070	500100070
Cabinet Material	Carbon Fiber	Carbon Fiber	Carbon Fiber	Carbon Fiber	Carbon Fiber
Cabinet weight(kg)	≈8kg	≈8kg	≈8kg	≈8kg	≈8kg
Refresh Rate(Hz)	≥1920/3840	≥1920/3840	≥1920/3840	≥1920/3840	≥1920/3840
Input voltage(Nominal)(V)	AC100-240	AC100-240	AC100-240	AC100-240	AC100-240
Input Power Frequency(Hz)	50/60(Hz)	50/60(Hz)	50/60(Hz)	50/60(Hz)	50/60(Hz)
Max Input Power(W/㎡)	≈360	≈360	≈360	≈360	≈360
Average Input Power(W/㎡)	≈180	≈180	≈180	≈180	≈180
Lifespan(H)	≥50000	≥50000	≥50000	≥50000	≥50000

Excellent Design

High contrast, high refresh rate, high strength, ultra-thin design

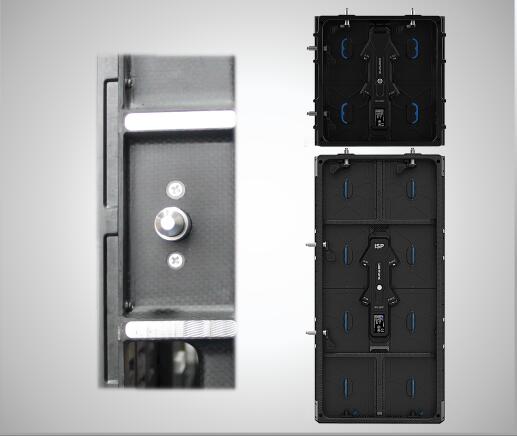

Left Picture Note :

1. Connection detail between hanging bracket and cabinets.

2. Connection detail between cabinets (Upper & Lower).

3. Mounting Bracket.

4. Connection detail between cabinets (Left & Right).

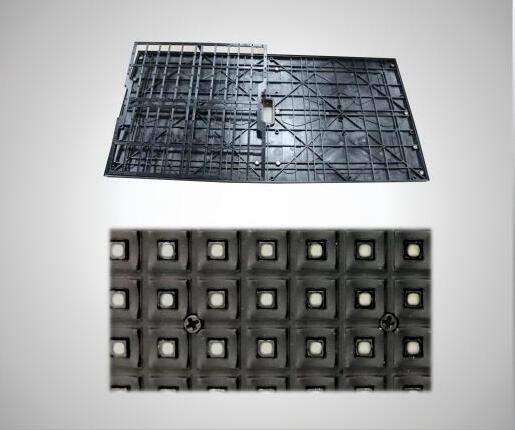

Led Module

1. Applied double bottom shells design

— Rear maintenance directly by delete screws

2. Patented mask cover

— Efficiently protect leds

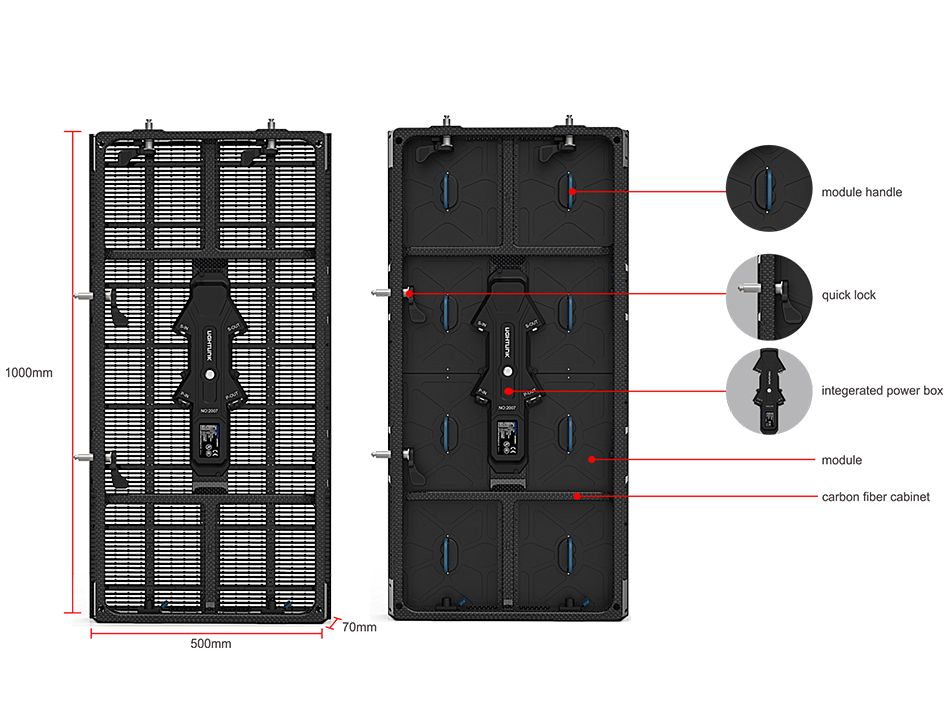

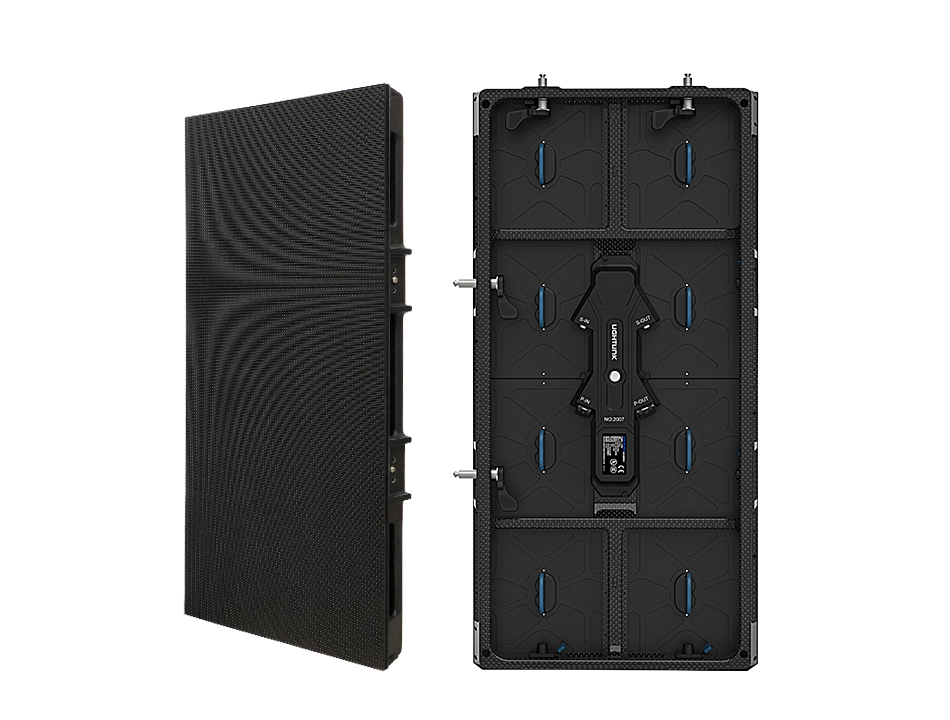

Led cabinet

1. Carbon fiber cabinet frame with aluminium alloy edge

— More lightweight and flat

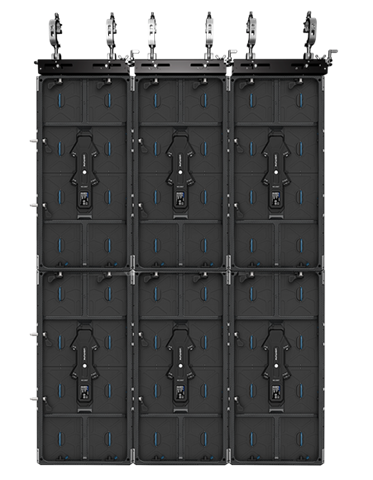

2. Two sizes cabinets can be spliced vertically

— Flexible to design as you wish
