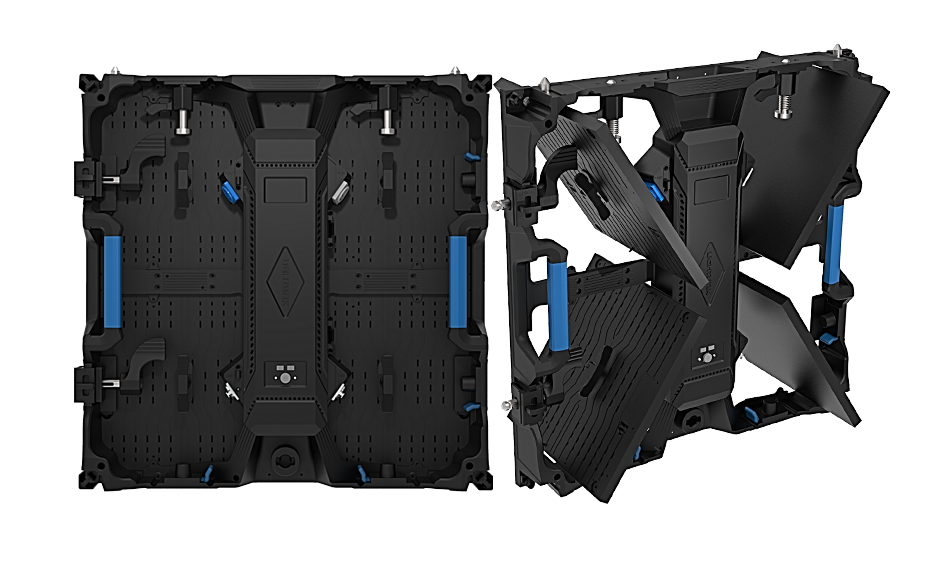

Product type: LR-Pro Ⅱ Arc
Pixel pitch: 2.6/2.9/3.4/3.9/4.8mm
Brightness: 800nits-13000nits
Cabinet material: Die Cast Aluminum

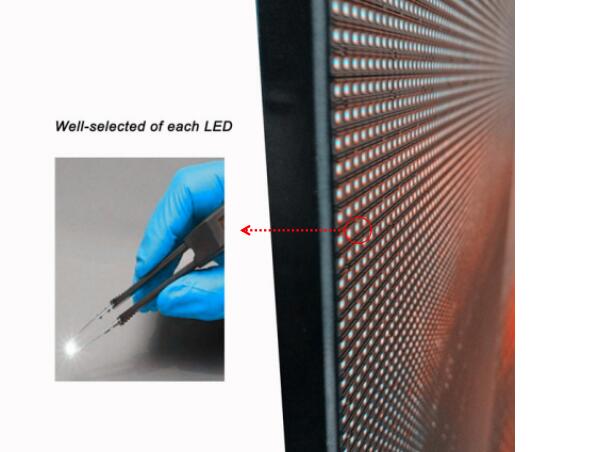

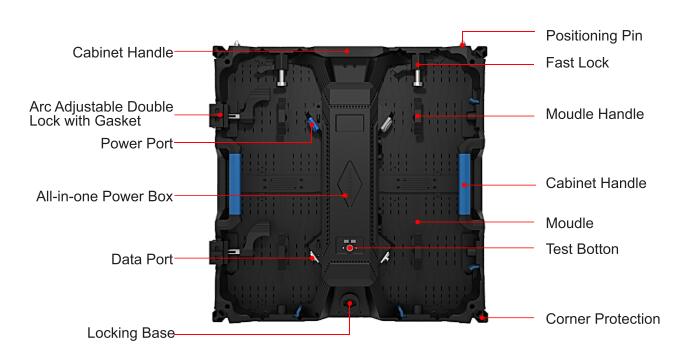

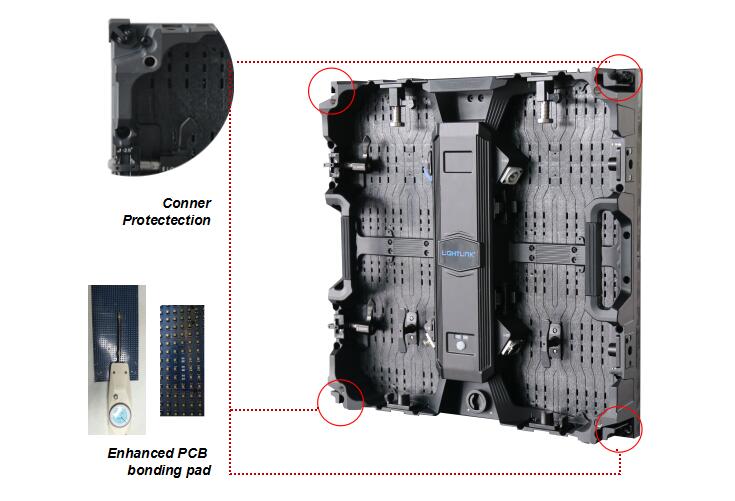

1. Each led is selected strictly and with corner protection design around the 4 corners from dropping led;
2. Aluminum die casting rear cover with better heat dissipation & IP rate;

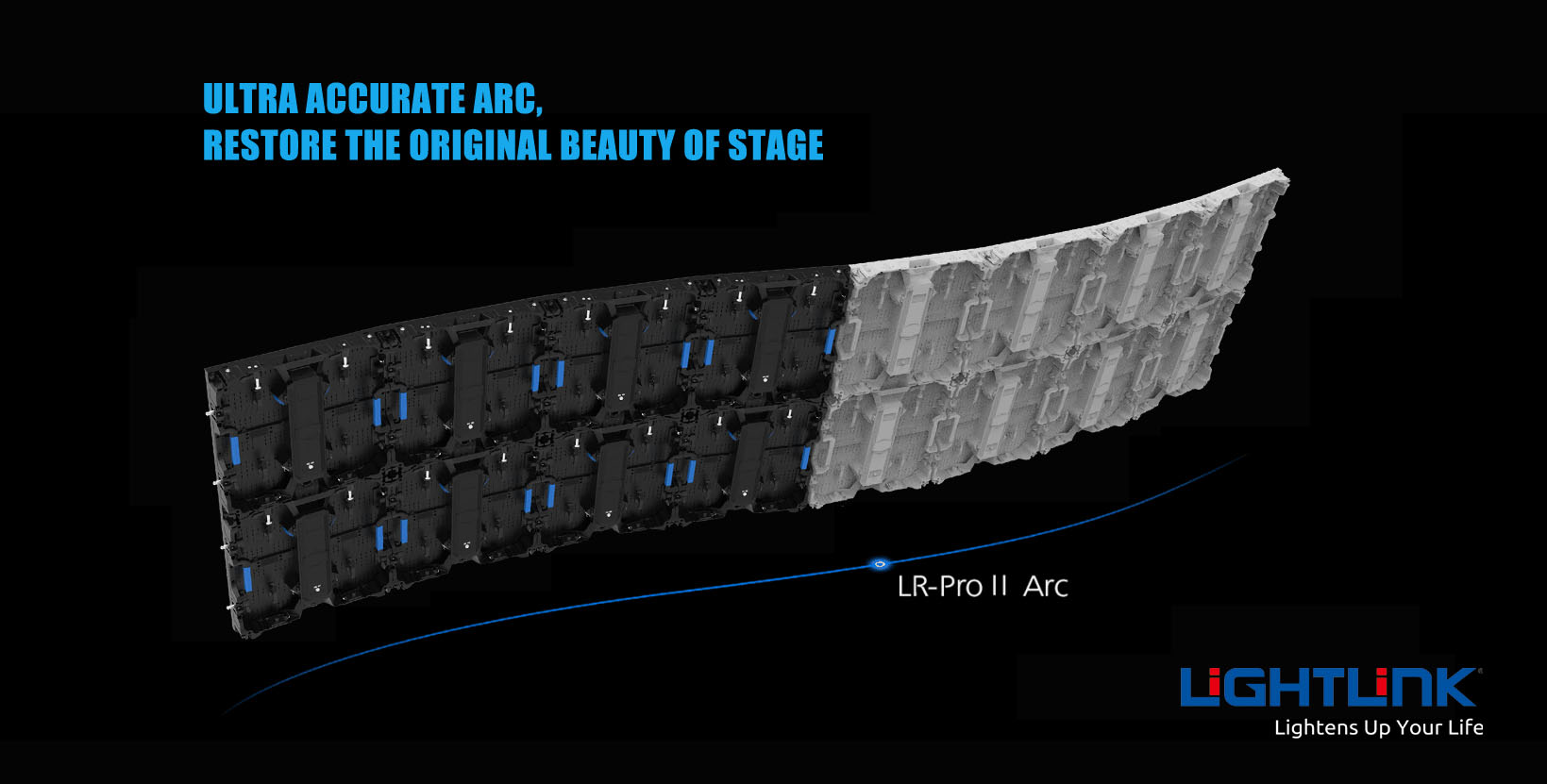

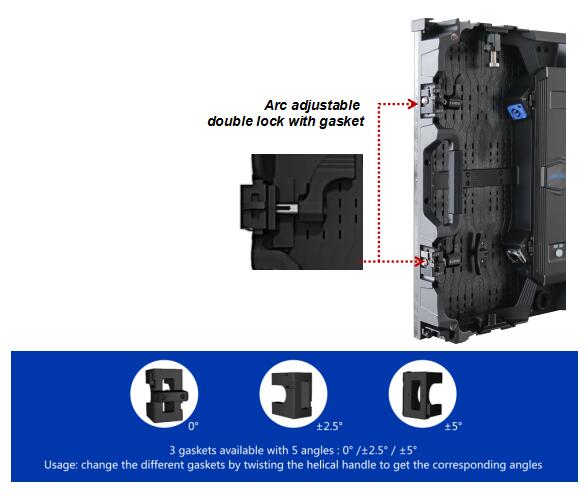

3. Newest arc double lock with gasket design which can adjust arc more accurate by 3 type gaskets(±5°/2.5°/0°) ,also compact and with better flatness;
4. The locking base design for applying to the newest stacking structure which can be straight/curved installed as you wish;
5. Ergonomic handle design, convenient to operate;
| Parameters | Value | ||||
| Pixel pitch（mm） | 2.6 | 2.9 | 3.4 | 3.9 | 4.8 |
| Pixel configuration | SMD Black led | SMD Black led | SMD Black led | SMD Black led | SMD Black led |
| Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Pixel Density（Pixels/㎡) | 147,456 | 43 264 | 28 224 | 20 736 | 12 544 |
| Brightness(cd/㎡) |
800≤&≤1300 |
1000≤&≤1300 |
1000≤&≤1200 |
1000≤&≤1300 |
1000≤&≤1100 |
| Viewing angle(H/V) | H:110 V:100 | H:110 V:100 | H:110 V:100 | H:110 V:100 | H:110 V:100 |
| Cabinet size(W*H*D mm) | 500*500*75 | 500*500*75 | 500*500*75 | 500*500*75 | 500*500*75 |
| Cabinet Material | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting |
| Cabinet weight(kg) | ≈8kg | ≈8kg | ≈8kg | ≈8kg | ≈8kg |
| Refresh Rate(Hz) | ≥3840(high level IC) | ≥3840(high level IC) | ≥3840(high level IC) | ≥3840(high level IC) | ≥3840(high level IC) |
| Input voltage(Nominal)(V) | AC100-240 | AC100-240 | AC100-240 | AC100-240 | AC100-240 |
| Input Power Frequency(Hz) | 50/60(Hz) | 50/60(Hz) | 50/60(Hz) | 50/60(Hz) | 50/60(Hz) |
| Max Input Power(W/㎡) | ≈720 | ≈720 | ≈720 | ≈720 | ≈720 |
| Average Input Power(W/㎡) | ≈360 | ≈360 | ≈360 | ≈360 | ≈360 |
| Lifespan(H) | ≥50,000 | ≥50,000 | ≥50,000 | ≥50,000 | ≥50,000 |
