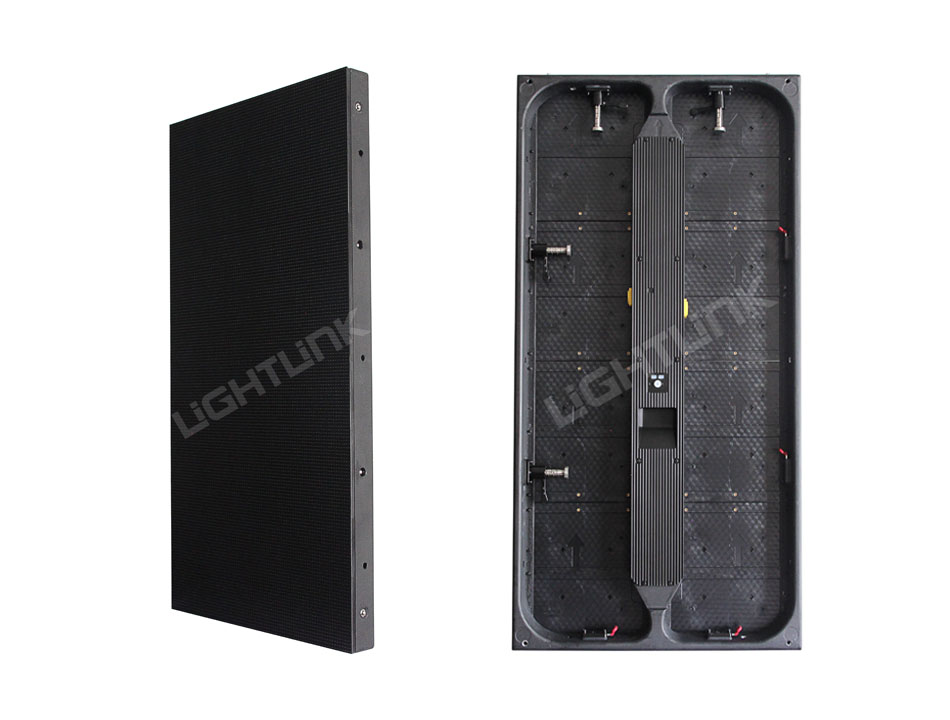

Product type: CFC5
Pixel pitch: 5.9mm
Brightness: ≥1100nits
Cabinet material: carbon fiber
1. Made by the new material carbon fiber with characteristics ultra-light and ultra-thin.
2. Single-person can complete the entire screen installation, and can replace any cabinet of the whole screen.
3. Carbon fiber cabinet has high strength, high temperature, wear resistance, corrosion resistance, fatigue, creep resistance, electrical conductivity, thermal conductivity, and many other excellent performance.
4. Save time:build quickly, fast maintain, easy to loading or unloading; save money: operating costs is 20% lower than diecast aluminum cabinet,both truss and transportation costs are low.
| Parameters | Value |
| Product type | CFC5 |
| Pixel pitch(mm) | 5.9 |
| Pixel configuration | SMD2020(Black LED) |
| Module size(mm) | 250×250 |

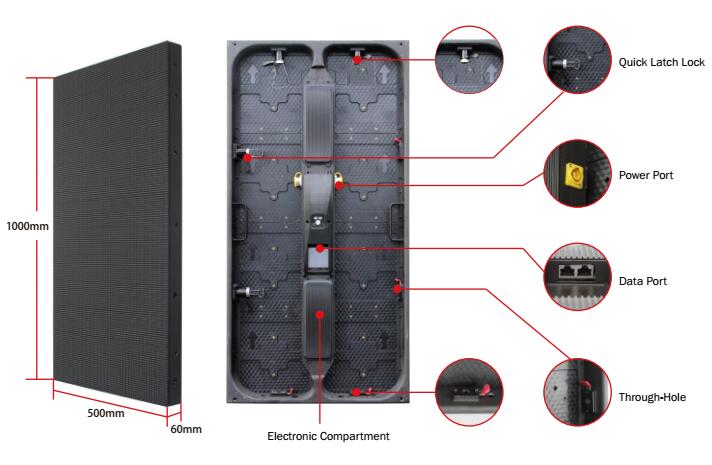

| Cabinet size(W*H*D mm) | 500×1000×60 |
| Pixel Density（Pixels/㎡) | 28,224 |
| Brightness(cd/㎡) | ≥1100nits |
| Cabinet Material | Carbon Fiber |
| Cabinet weight(kg) | ≈7.5kg |
| Input Power Frequency(Hz) | 50/60HZ |
| Input voltage(Nominal)(V) | 220V(110/110-220) |
| Max Input Power(W/㎡) | 400 |
| Average Input Power(W/㎡) | 200 |
| Lifespan(H) | 50,000 |
| Certificate | CE,RoHS |
High contrast, high refresh rate, high strength, ultra-thin design

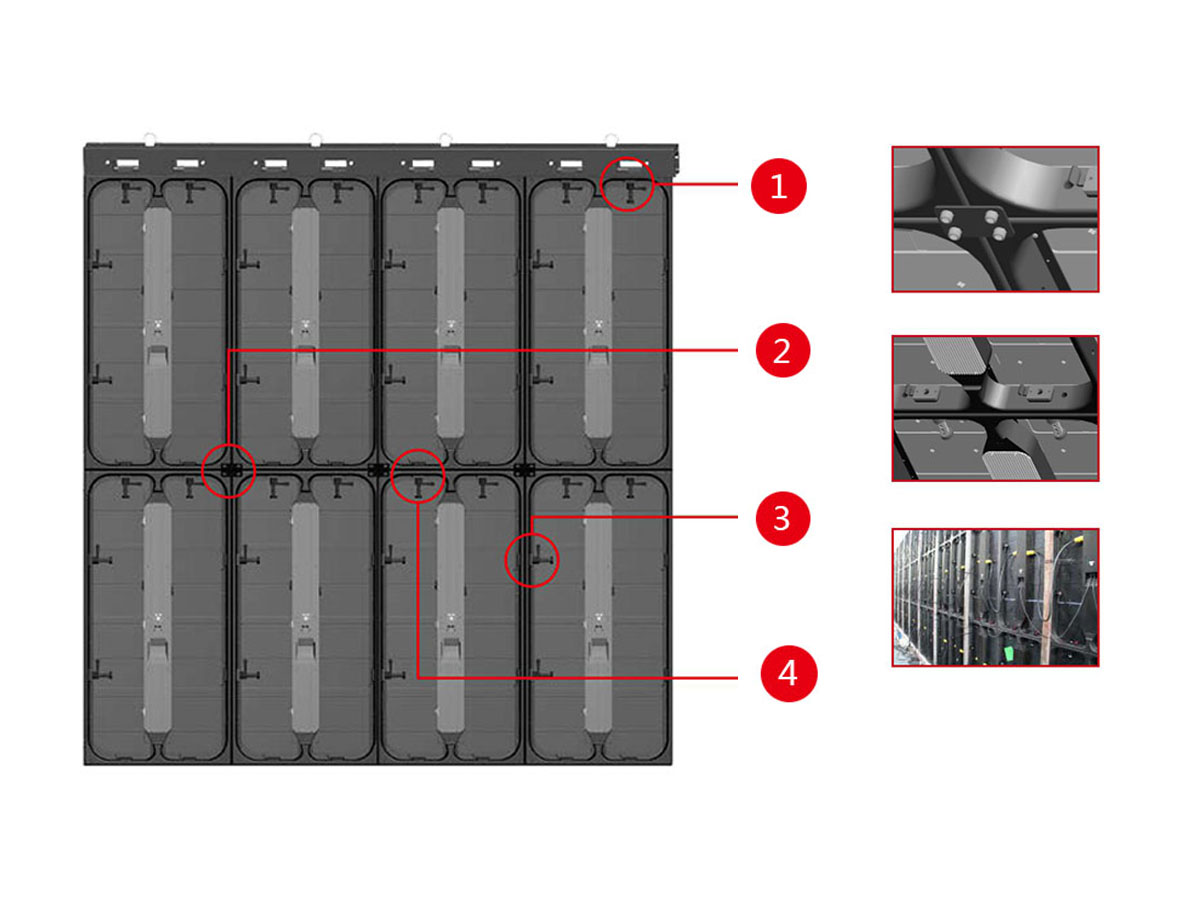

1. Connection detail between hanging bracket and cabinets.
2. Connection detail between cabinets (Upper & Lower).
3. Mounting Bracket.
4. Connection detail between cabinets (Left & Right).
