Product type: LR-Pro Ⅱ
Brightness: 800-1300nits
Pixel pitch: 2.6mm / 2.9mm/3.4mm/3.9mm/4.8mm
Cabinet material: Die Cast Aluminum

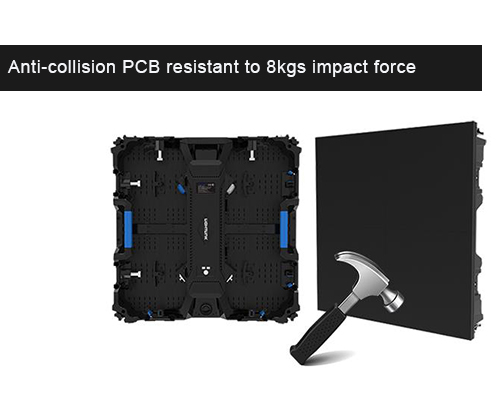

1.Newly designed anti-collision protection improves LED soldering strength;
2.New designed die-casting aluminum back cover for better waterproof and heat disspation;

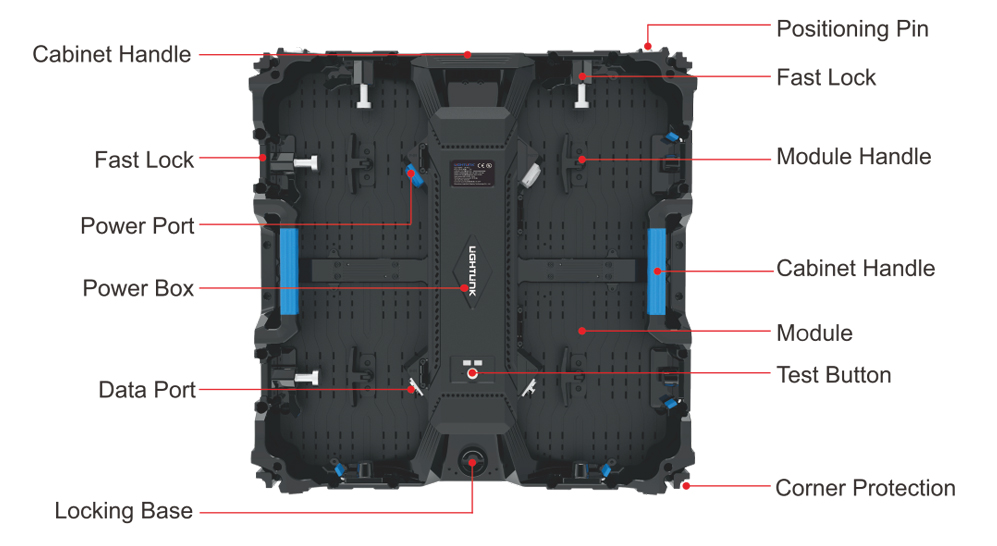

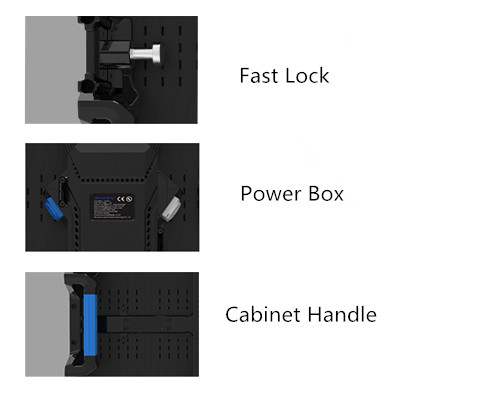

3.Upgraded fastlocks permit faster and more reliable installations;
4.Ergonomical-designed handle for easy operation;
5.Modules equippped with safe buckle backup design;
6.New type hanging bar both for hanging & ground beam;
7.Vertical fastlocks allow for displaced installation and more creative panel arrangements.
| Parameters | Value | ||||
| Pixel pitch（mm） | 2.6 | 2.9 | 3.4 | 3.9 | 4.8 |
| Pixel configuration | SMD 1515 | SMD 1515 | SMD 1515 | SMD 2020 | SMD 2020 |
| Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Pixel Density（Pixels/㎡) | 147,456 | 112,896 | 82,944 | 65,536 | 43,264 |
|
Brightness(cd/㎡) |
800-1300 |
1000-1300 | 1000-1200 | 1000-1300 | 1000-1200 |
| Viewing angle(H/V) | H:110 V:100 | H:110 V:100 | H:110 V:100 | H:110 V:100 | H:110 V:100 |
| Cabinet size(W*H*D mm) | 500*500*74 | 500*500*74 | 500*500*74 | 500*500*74 | 500*500*74 |
| Cabinet Material | die-cast aluminum | die-cast aluminum | die-cast aluminum | die-cast aluminum | die-cast aluminum |
| Cabinet weight(kg) | ≈8kg | ≈8kg | ≈8kg | ≈8kg | ≈8kg |
| Refresh Rate(Hz) | ≥3840(high level IC) | ≥3840(high level IC) | ≥3840(high level IC) | ≥3840(high level IC) | ≥3840(high level IC) |
| Input voltage(Nominal)(V) | AC110-240 | AC110-240 | AC110-240 | AC110-240 | AC110-240 |
| Input Power Frequency(Hz) | 50/60(Hz) | 50/60(Hz) | 50/60(Hz) | 50/60(Hz) | 50/60(Hz) |
| Max Input Power(W/㎡) | ≈600 | ≈600 | ≈600 | ≈600 | ≈600 |
| Average Input Power(W/㎡) | ≈300 | ≈300 | ≈300 | ≈300 | ≈300 |
| Lifespan(H) | ≥50,000 | ≥50,000 | ≥50,000 | ≥50,000 | ≥50,000 |
APPLICATIONS
Products of LR-Pro Ⅱ series , mainly used in stage rental, press conference, broadcasting
